Note: Please check the part number before buying to make sure it fits your car
Fit for the Following Vehicles
Fit for Chrysler Sebring 2007-2009
Fit for Dodge Caliber 2006-2009
Fit for Dodge Avenger 2007-2009

Note: Please check the part number before buying to make sure it fits your car

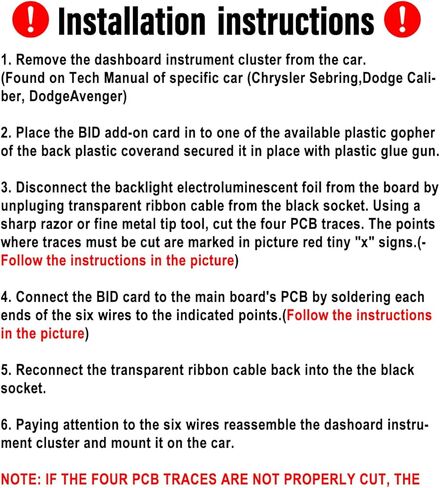

Installation steps-Dodge Caliber/Chrysler Sebring/Dodge Avenger：
1. Remove the dashboard instrument cluster from the car.
(Found on Tech Manual of specific car (Chrysler Sebring,Dodge Caliber, DodgeAvenger)

2. Place the BID add-on card in to one of the available plastic gopher of the back plastic coverand secured it in place
with plastic glue gun.

3. Disconnect the backlight electroluminescent foil from the board by unpluging transparent ribbon cable from the
black socket. Using a sharp razor or fine metal tip tool, cut the four PCB traces. The points where traces must be cut
are marked in picture red tiny "x" signs.

4. Connect the BID card to the main board's PCB by soldering each ends of the six wires to the indicated points.

5. Reconnect the transparent ribbon cable back into the the black socket.

6. Paying attention to the six wires reassemble the dashoard instrument cluster and mount it on the car.

NOTE: IF THE FOUR PCB TRACES ARE NOT PROPERLY CUT, THE BID CARD AND/OR MAINBOARD COULD BE
MALFUNCTIONED AS A RESULT.PLEASE MAKE SURE THAT ARE CUT
