RC Brushless Motor ESC Combo: 3650 3900KV Brushless Motor and 60A ESC Combo Set Waterproof for 1/10 Remote Control Cars Trucks Off-Road Vehicle

KWD 20.500
ColorBlack (motor+60A esc)
– 1 +

Special Features

  • ▶Suitable for All Weather: Complete 3650 3900KV sensorless brushless motor and 60A brushless ESC, waterproof and dustproof for all weather races. You can use them together or separately according to your needs.
  • ▶Professional: 3650 2300KV Brushless motor designed for 1/10 RC car suck as on-road car /tourning car, cool black appearance; high quality: CNC machined 6061-T6 heat sink, excellent heat dissipation; profession: with excellent start-up,acceleration and linearity features, strong resistant current capability.
  • ▶Basic Motor & ESC Combo Only Fits 2S Battery: The smaller the KV value,the greater the intensity and the slower the speed, as this 2300KV brushless motor,suitable for heavy cars,such as off-road vehicles, and the 60A ESC is best to use 2S battery, please do not use this 60A ESC together with 3S battery or above 3S battery to avoid short circuit!!
  • ▶Tips for Use: Waterproof 60A ESC built with high quality components to ensure high efficiency operation, it works prefectly with 2S lipo battery, if your car works with 3-4S battery, you can choose 120-150A ESC. Please read the instructions carefully before use.
  • ▶Multiple Protection: Our this 2300KV brushless motor and 60A ESC set with multiple protection,such as low voltage cut-off protection for lithium or nickel battery,over-heat protection, throttle signal loss protection and motor blocked protection.

Description

Brushless Motor 3650 3900KV and 60A ESC Combo Set

Features:

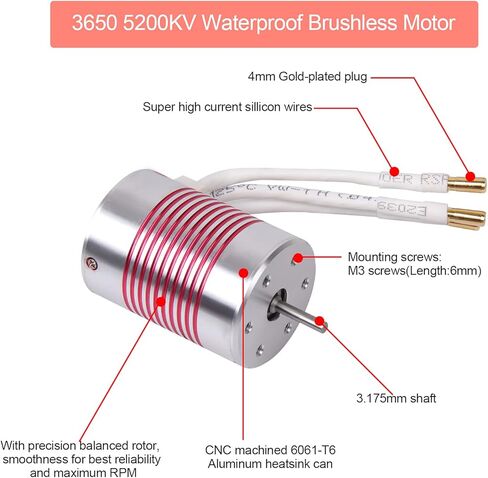

Water-proof Motor:
✔High Purity CopperWindings Maximizes Efficiency
✔High RPM ABEC5 Oversized Bearings
✔Precision balanced rotor, removable/replaceable rotor
✔Specially designed for 1/10 rc car, waterproof,a good choice for your rc car.

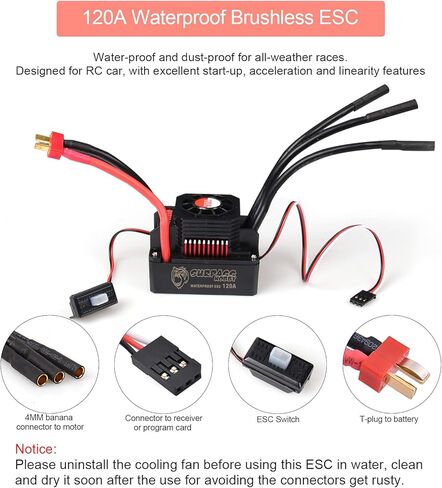

Water-proof ESC:
✔Specially designed for RC car, water-proof and dust-proof for all-weather races.
✔Excellent start-up, acceleration and linearity features.
✔The strong resistant current capability, excellent heat dissipation.
✔Multiple protection features, widely compatible with for 1/10 RC car
Notice
This 60A ESC is best to use 2S battery, please do not use this 60A ESC together with 3S Battery or above 3S battery to avoid short circuit!!

Specifications:
Motor:
Watts: 900W
Max voltage: KV(RPM/Volt): 3900KV
Max RPM: 50000
Plug type: 4mm golden banana plug
Shaft length: 15mm
Shaft diameter: 3.175mm
Diameter: 36mm
Length: 50mm
Weight: 180g

ESC:
Cont/Burst Current: 60A/320A
Motor Type: Sensorless brushless motor
Suitable brushless motor: ≥9T
Resistance: 0.0007ohm
Battery: 2-3cells Lipo/ 4-9cells NiMH
BEC Output: 5.8V/3A(switch mode)

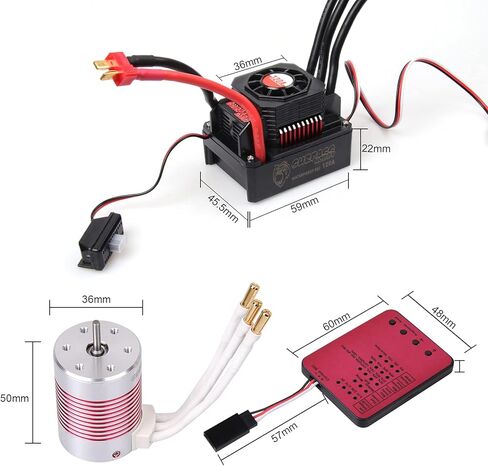

Diamension:50 X 35 X 36mm (1.97 x 1.38 x 1.38in)

Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits"Beep-Beep"tone.
6. When the throttle stick is in the neutral position, the motor re-emits "Beep-Beep"tone.
7. The ESC is workable.
8. please read product manual(ESC)

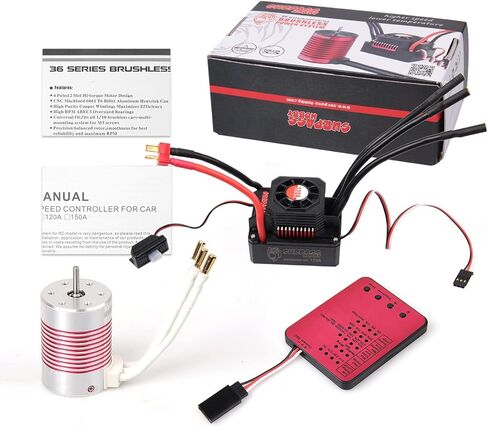

Package
1 X 3650 3900KV Brushless Motor
1 X 60A ESC
2 X product manual
