Flysky FS-A8S 2.4G 8CH Mini Receiver with PPM i-Bus SBUS Output for FS-i4 FS-i6 FS-i6S RC Drone Quadcopter Spare Parts

KWD 7
Brand
MLRPGO
Weight
9 g
– 1 +

Special Features

  • The FS-A8S is a compact one-way receiver. It is designed for multi-rotor aircraft. It uses the AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, and supports standard PPM output as well as has i-BUS support for up to 18 channels.
  • Easy to bind and very fast link-up, quick and extremely stable in performance.
  • Ultra-small size and ultra-lightweight, effectively save space and reduce item's weight-bearing.
  • The receiver is suitable for FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F RC transmitter. Changing mode (i-BUS / S.BUS) is simplier and easier.
  • Channels: PPM 8CH, i-BUS 18CH

Description

Specification:
Material: PCB + Rubber
Color: Black
Brand Name: Flysky
Item Name: FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH
Model Type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
Port: PPM/i-BUS/S.BUS
Transfer Method: FHSS
Data Output: 1.5mm*3 Pin PPM/i-BUS/S.BUS Antenna Length: 26mm (Not including brass contacts)
Input Power Supply: 4.0-8.4V
Display Method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each Channel Data: Depend On The Transmitter
Channel Delay: Certificate: CE0678, FCCID: N45ZA8S00
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

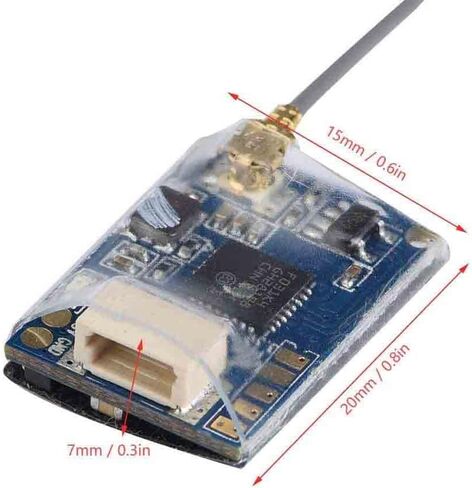

Size: Approx. 20 * 15 * 7mm / 0.8 * 0.6 * 0.3inch
Weight: 9g
Type: RC Model Part & Acces
Package List:
1 * Flysky FS-A8S 2.4G 8CH Mini Receiver
1 * Cable
1 * Manual
