AGFRC 45KG Waterproof RC-Steering-Servo-Motor High-Torque - Full Metal Gear Digital Brushless Servo for 1/8 1/10 RC Car Boat Crawler, Control Angle 180°(A81BHMW)

KWD 43.500
Brand
AGFRC
Weight
83 g
EditionA81BHMW
– 1 +

Special Features

  • 【High Precision & Torque】 Advanced linearity and accuracy, stable, low noise, waterproof, dust-proof. AGFRC RC steering digital servo motor uses high-precision CNC production technology to reduce production deviation and improve product tightness. The maximum torque of this steering servo is up to 45 kg/cm (597 oz/in) @8.4V and speed up to 0.085sec/60°@8.4V.
  • 【High Quality & Performance】45KG waterproof standard crawler brushless servo equipped with full Aluminum shell, three ball bearings, and patent reinforced steel gear for smoother operating experience and stronger anti-collision performance; and using magnetic angle sensor which is low power consumption and can instantaneous angle sensing.
  • 【IP67 Waterproof Design】 With IP67 waterproof design, this servo motor can still work normally when immersed up to 1 meter depth of 30 minutes. When you cross the mountains and pass the charming stream, fully magnetic waterproof IP67 grade can let your model play in humid environment or rainy day. Size: 40*20*37.5mm (1.57*0.79*1.48in)
  • 【Programmable】This upgrade high torque servo is programmable by the AGF-SPV3 servo programmer (not include) to change the torque, speed, angle, inversion, neutral position, etc.
  • 【Application】 Ideal for 1/8 & 1/10 scale on road, off road, buggy, monster truck, boat, airplane, helicopter, robot and engine etc.

Description

AGFRC A81BHMW servo adopts all-aluminum CNC casing and full steel gears and pin shafts, which make the steering servo stronger and more anti-collision performance. And it adopts standard size, which can be suitable for most 1/10 and 1/8 scale rc models, especially 1/8 & 1/10 scale on road, off road, buggy, monster truck, boat, airplane, helicopter, robot and engine etc.
In addition, the dust-proof design, IP67 magnetic waterproof design and -15C° low temperature resistance design allow you to play freely whether you are climbing mountains, crossing streams or shuttling in the snow, bringing you the ultimate playing experience.
Feature
Strengthen high chrome steel shaft
Extra strong patent steel gears
Super strong three ball bearings
High efficiency bruhless motor
Programmable digital circuit
Magnetic sensor waterproof IP67

Stall Torque
28 kg-cm (375 oz-in) @ 4.8V
34 kg-cm (458 oz-in) @ 6.0V
39 kg-cm (528 oz-in) @ 7.4V
45 kg-cm (597 oz-in) @ 8.4V

Operating Speed
0.140sec/60° @ 4.8V
0.115sec/60° @ 6.0V
0.100sec/60° @ 7.4V
0.085sec/60° @ 8.4V

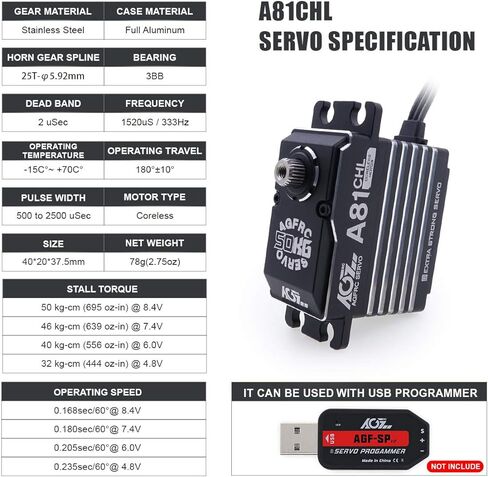

Specification
Control System: PWM, 1520uS/333hz

Dead Band: 2 uSec

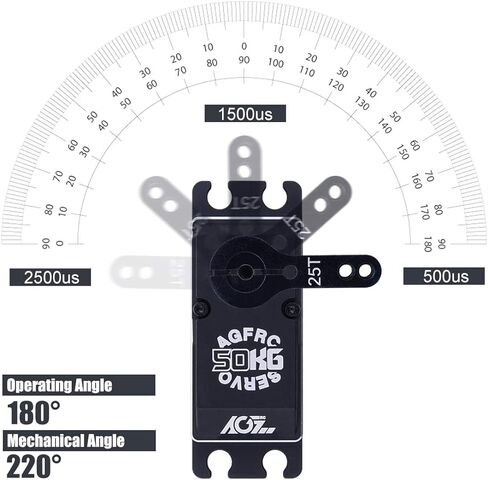

Operating Travel: 180°±10 °, 500 to 2500 uSec

Horn Gear Spline: 25T-φ5.92mm
Bearing: Three ball bearings
Case Material: AL6061T6

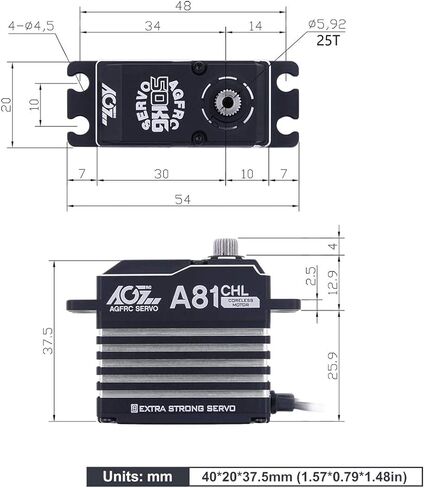

Size: 40*20*37.5mm (1.57*0.79*1.48in)
CE Certification: Yes
Weight: 83g
Wire: JR 300mm/22AWG

Package Included
1 x AGFRC A81BHMW Programmable Servo
1 x 25T Black Metal Servo Horn
1 x Accessory kit
