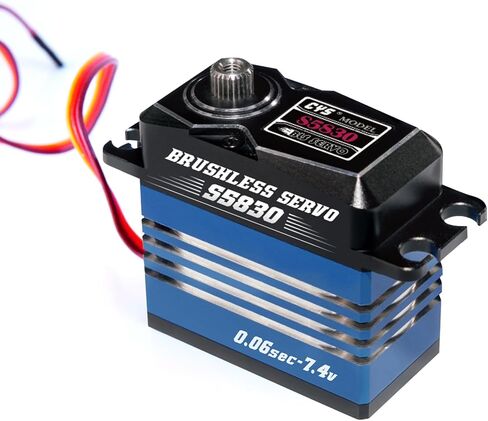

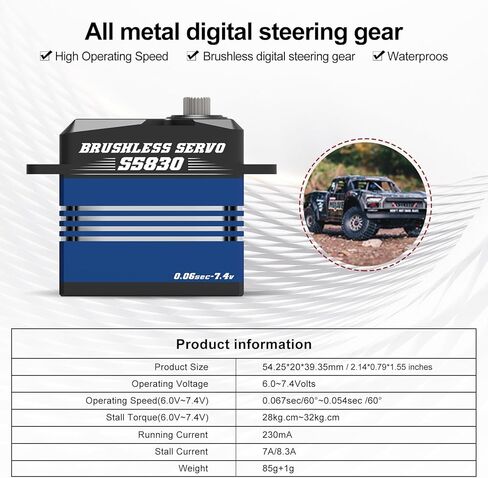

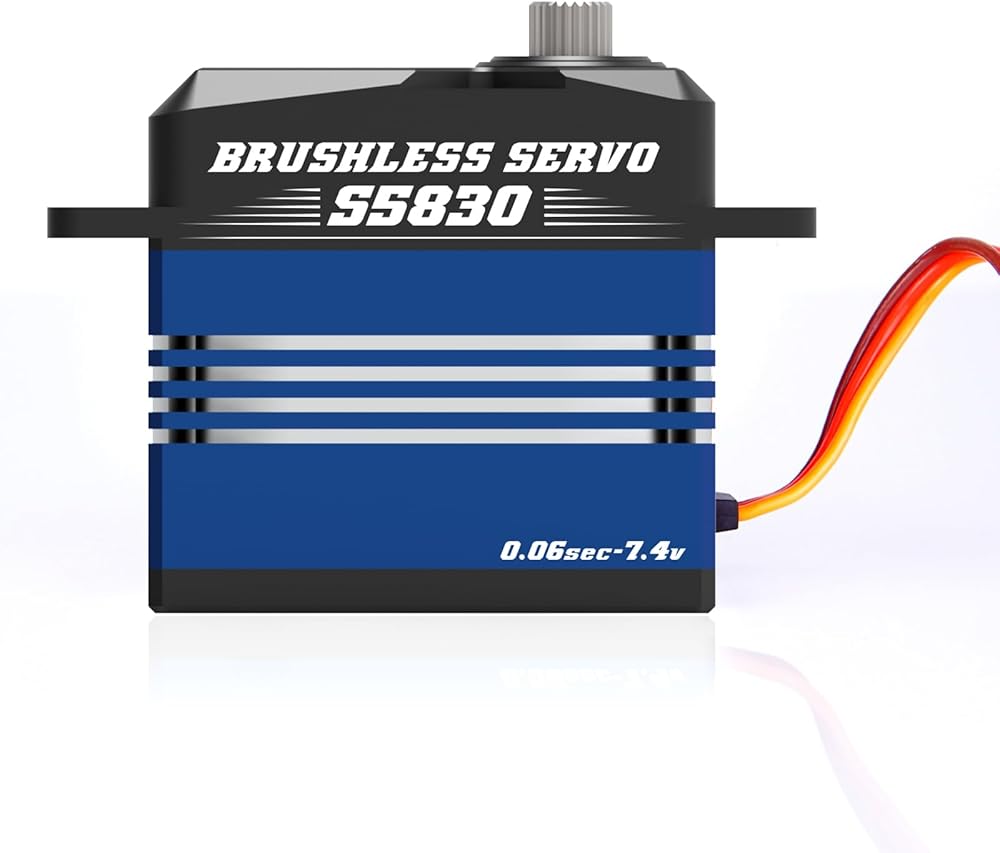

Specification Sheet of BLS5830

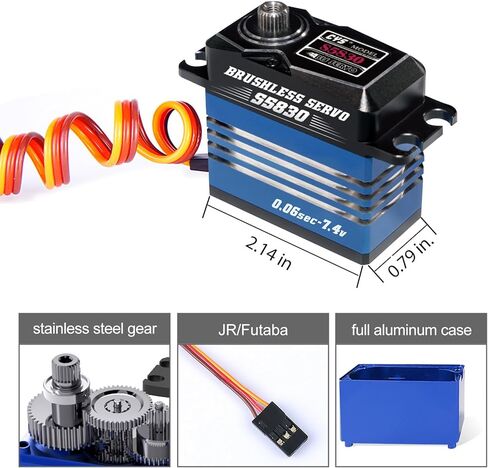

Item Size: 2.14*0.79*1.55 inches (54.25*20*39.35mm)
Weight: 2.54±0.03 ounces (72g ± 1g)
Storage Temperature Range: -20℃～60℃
Operating Temperature Range: -10℃～50℃
Operating Voltage Range: 6.0V～7.4V
Operating speed (at no load): 0.067sec/60° (6.0V), 0.054sec/60° (7.4V)
Running current (at no load): 230mA
Stall torque (at locked): 28kg～32kg
Stall current (at locked): 7A～8.3A
Idle current (at stopped): 20mA
Limit angle: 180°± 10°
Connector wire gauge: ＃22 PVC
Connector wire length: 300± 5 mm
Horn gear spline: 25T/ψ5.94
Horn type: Cross rudder board, Hexagon rudder board
Reduction ratio: 195: 1
Control system: change the pulse width
Amplifier type: Digital controller
Operating travel: 90°(1000→2000μsec)
Neutral position: 1500μsec
Dead band width: 3μsec
Rotating direction: anticlock(1500→2000 μsec)
Pulse width range: 800→2200μsec
Maximum travel: 125°(800→2200μsec)

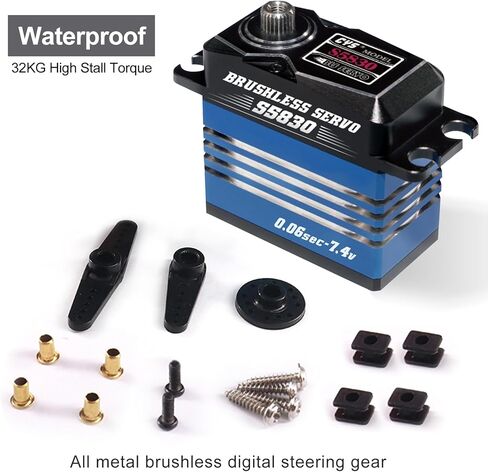

What is included
Steering engine*1
Metal screws*2
Black screws*2
Rubber pad*4
Screws*4
Rudder arm*3
