Features:
* 4 Pole 12 Slot Hi-torque Motor Design
* CNC Machined 6061 T6 Billet Aluminum Heatsink Can
* High Purity Copper Windings Maximizes Efficiency
* High RPM ABEC5 Oversized Bearings
* Universal fit,fits all 1/14th, 16th brushless cars-multi-mounting system for M3 screws
* Precision balanced rotor,smoothness for best reliability and maximum RPM
* Stator - Super Thin (0.35mm) Laminations
* Removable/Replaceable Rotor
* Precision Engineered for Maximum Energy Conversion
Specification:
Brand: KingVal
Model: 2838
KV(RPM/Volt): 5300KV
Max watts: 600W
Max voltage:
Max current: 60A
IO: 2.2A
Resistance: 0.0175
Motor Size: ø28*40mm
Rotor poles: 4
Max RPM: 50K
Shaft length: 15mm
Shaft Diameter: 3.175mm
Connector: 4.0mm gold
Weight: 95g

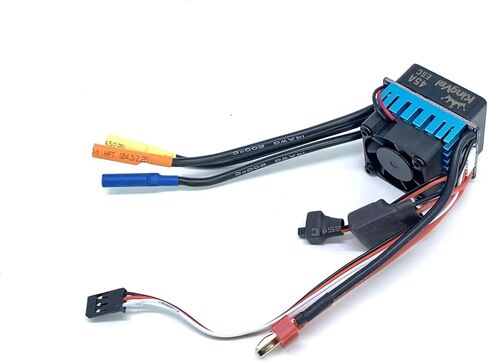

45A ESC:
Continuous current: 45A
Burst current: 180A
Battery: 2-3 cells Lipo battery, 4-9 cells NiMH battery
Suitable Car: 1/10 car
Suitable Brushless Motor: ≥9T
Resistance: 0.0014ohm
BEC output: 5.8V/3A (Switch Mode)
Dimension: 32.5x34x24mm
Weight: 74g
Package List:
1 * 2838 Brushless Motor
1 * 45A Brushless ESC
