Electrical Specification:
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Running degree: 180° (when 500~2500 μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 μsec)
Mechanical Specification:
Weight: 100 g (3.5 oz)

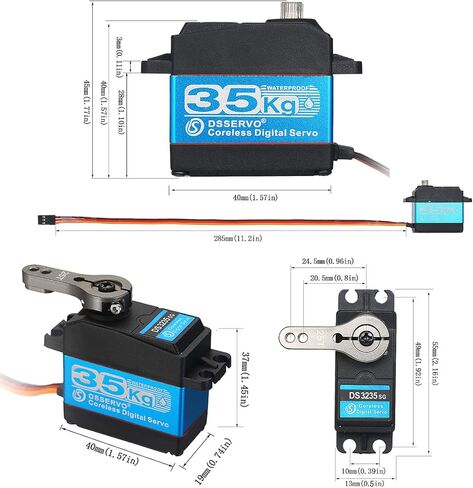

Size: 1.77 x 0.75 x 1.57 in(45*19*40mm )
Gear ratio: 373

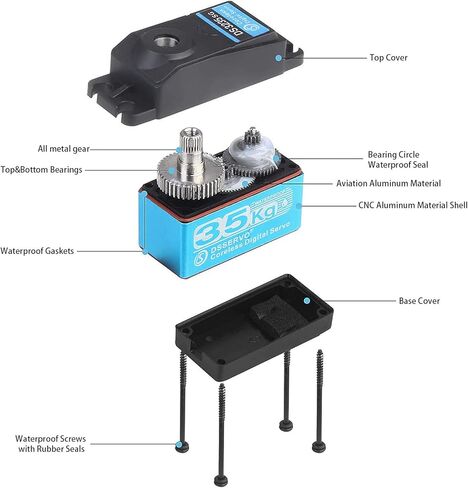

Bearing: Double bearing
Connector wire: 11.2inches(285mm)
Motor: 3-pole(s)
Waterproof performance: IP66
Package Information:

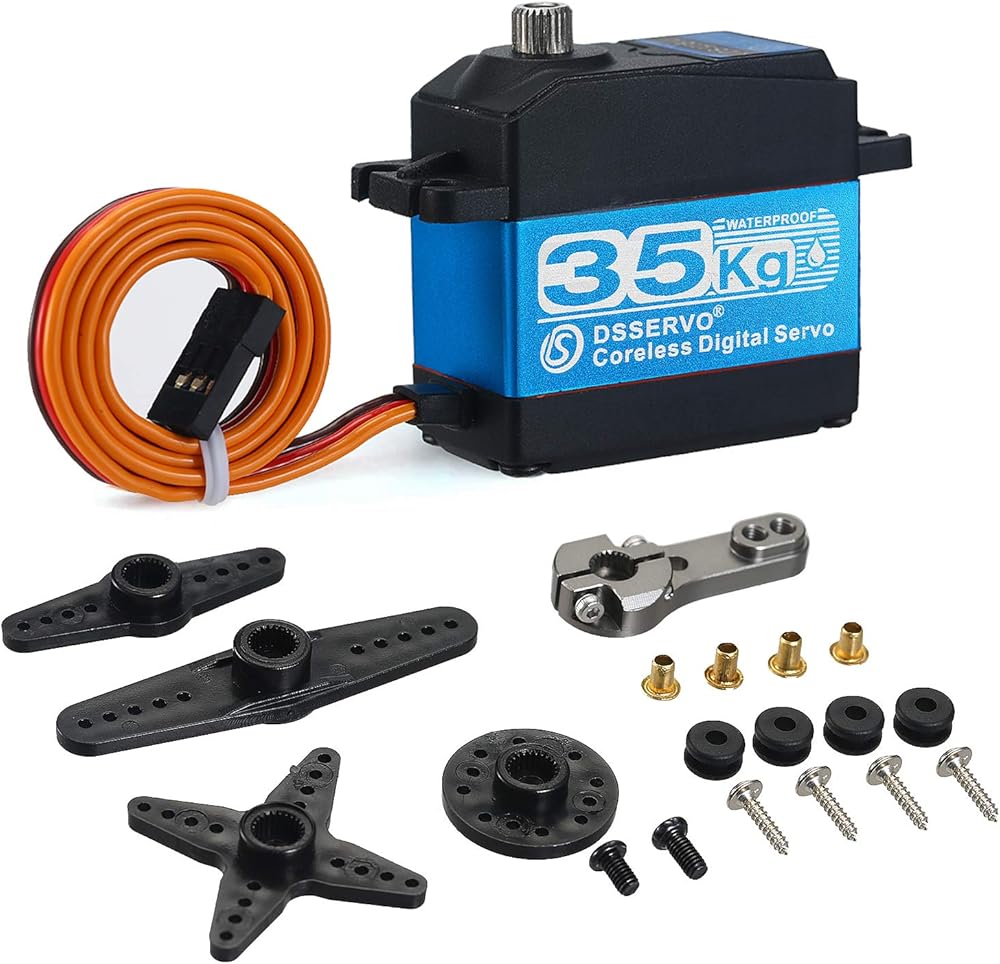

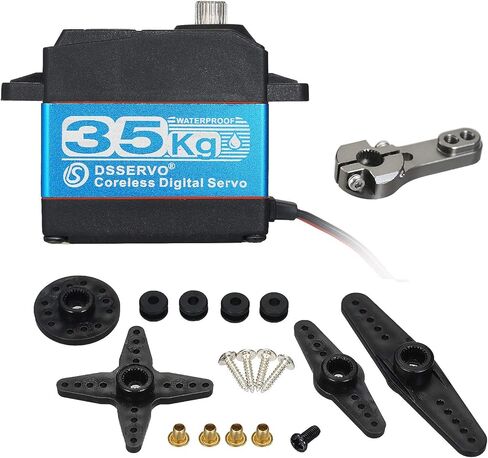

1 x DS3235SSG 35kg 180°Coreless Servo
1 x 25T Adjustable metal servo arm
One set of accessories
