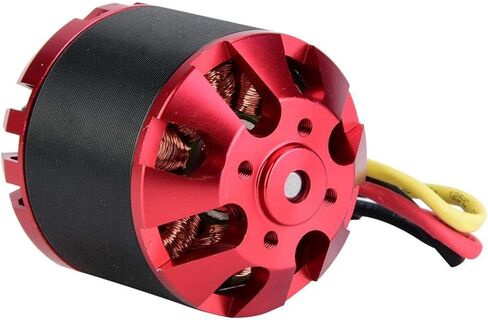

Brushless Outrunner Motor, C4250 Outrunner Brushless Sensorless Motor Brushless Belt Drive Motor with Propeller for Electric Scooter Aeromodelling

KWD 16
– 1 +

Special Features

  • ❥❥❥ Excellent Performance: This sensorless motor with hall element, smooth start, high efficiency, high torque. Low energy consumption and low noise.
  • ❥❥❥ Good Performance: Precisely balanced rotor is stable with high speed, ensure the motor high-speed running without shake and has the best reliability and the largest RPM.
  • ❥❥❥ Outstanding Function: The electric motor has excellent heat dissipation quality ensures reliable operation system. Precision design brushless motor has steady shaft has longer service life.
  • ❥❥❥ Practical Accessories: Our brushless motor with precision design for maximum conversion of energy. Steady shaft has longer service life.
  • ❥❥❥ Size: Mounting Holes Spacing: 25/17mm. Mounting Hole Size: M2.5*4. Diameter: Approx. 42mm / 1.7inch. Height: Approx. 50mm / 2.0inch.

Description

Specifications:
Condition: 100% Brand New
Item Type: Brushless Motor
Material: Alloy
Model: C4250
Shaft Diameter: 5mm
Output Shaft Length: 20mm
KV Value: 560KV (customizable KV value)
Maximum Power: 1760W
Voltage: 11.1-36V
Speed: 6000-9000
Torque: 1-2N/m
Stall Torque: 7-8N/m
Winding Number: 9
Number of Motor Poles: 14P
Stator Slot Number: 12N
Resistance: 0.068Ω
No-load Current: 1.5-1.6A (maximum current 80A)
Banana Connector: 3.5/4.0mm
Lithium Battery Section Number: 3-8S
Mounting Holes Spacing: 25/17mm
Mounting Hole Size: M2.5*4
Diameter: Approx. 42mm / 1.7inch
Height: Approx. 50mm / 2.0inch
Weight: Approx. 257g

Package List:
1 x Motor
1 x Propeller
1 x Bracket
8 x Screw
