Features:
*4 Poles 12-Slot Hi-torque Motor Design
*CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*High Purity Copper Windings Maximizes Efficiency
*High RPM ABEC5 Oversized Bearings
*Universal fit, fits all 1/16, 1/18 brushless cars-multi-mounting system for M2.5 screws
*Precision balanced rotor, smoothness for best reliability and maximum RPM
*Stator - Super Thin (0.35mm) Laminations
*Precision Engineered for Maximum Energy Conversion
Specification:
Brand Name: KingVal

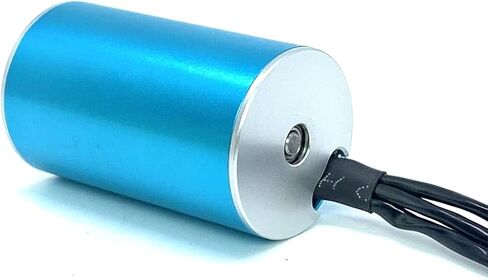

Product: 2440 Sensorless Brushless Motor

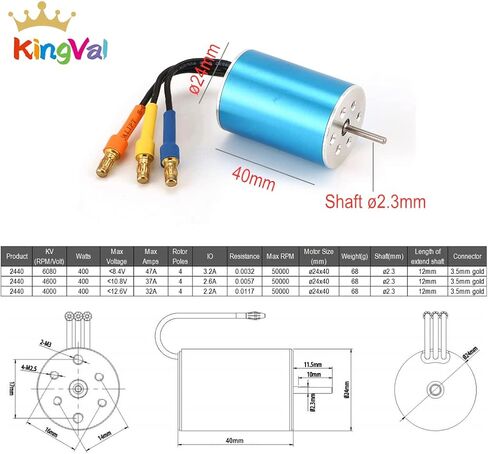

Motor Size: ø24x40mm
KV(RPM/Volt): 4600
Watts: 400
Max Voltage:
Max Amps: 37A
Rotor Poles: 4
IO: 2.6A
Resistance: 0.0057
Max RPM: 50000
Shaft Diameter: 2.3mm
Length of extend shaft: 12mm

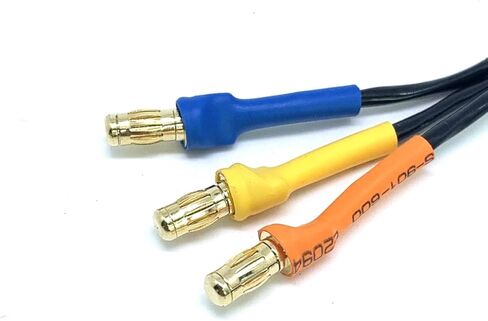

Connector: 3.5mm gold
N.W: 70g

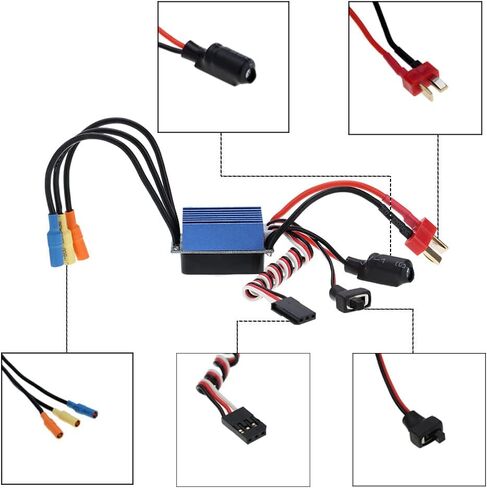

35A ESC:
Cont.Current/Burst Current: 35A/120A
Motor Type: Sensorless Brushless Motor
Suitable Car: 1/18, 1/16, 1/14 Car
Suitable Brushless Motor: ≥12T
Resistance: 0.003ohm
Battery: 2-3 cells Lipo; 4-9 cells NiMH
BEC Output: 5V/2A(analog mode)
Dimension: 25*30*18.5mm
Weight: 33g
Package List:

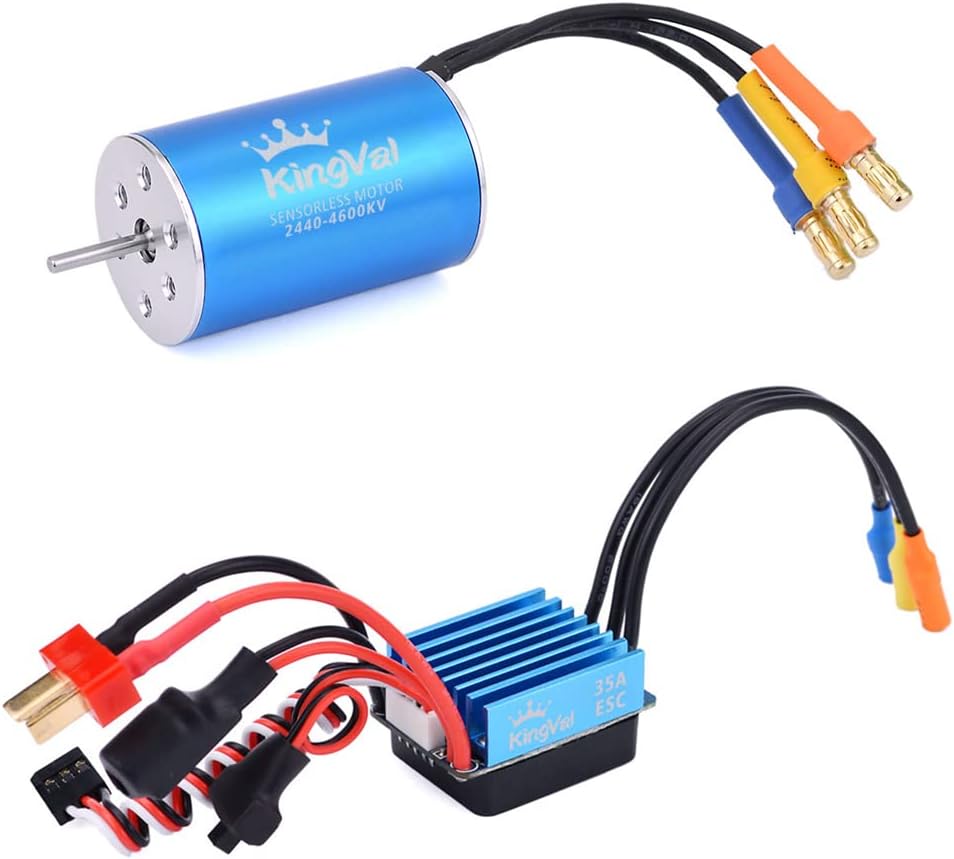

1 x 2440 Sensorless Brushless Motor
1 x 35A Brushless ESC
1 x Manual
