SoloGood F722 Flight Controller 30.5x30.5MM FC Stack with 4in1 60A ESC BLS8 Integrating 5V/10V Dual BEC for FPV RC Racing Drone Freestyle Quadcopt

KWD 30
Brand
SoloGood
Category
Quadcopters
Weight
80 g
– 1 +

Special Features

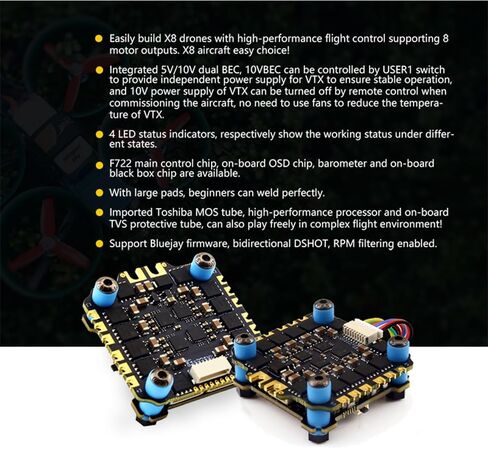

  • SoloGood high-performance flight control supports up to 8 motor outputs, making it easy to build X8 drones. Integrating 5V/10V dual BEC, 10VBEC can provide independent power to the VTX through the USER1 control switch to ensure stable operation.
  • When debugging the aircraft, the 10V power of the VTX can be remotely turned off without the need for a fan to desuperheat the VTX.
  • The flight control has four LED status indicators, which display the working status under different states. F722 main control chip, onboard OSD chip, barometer, and onboard black box chip are also available.
  • Using large solder pads, the pads are kept away from the components to ensure perfect soldering for beginners. The electric tuning adopts imported Toshiba MOS transistors, high-performance processors, and onboard TVS protection tubes to ensure maximum performance even in complex flight environments, and has undergone multiple layers of testing!
  • Support Bluejay firmware, bidirectional DSHOT, and enable RPM filtering.

Description

Main control: STM32F722RET6
 Gyroscope: ICM42688P
 Barometer: Support (DPS310)
 OSD: Support (AT7456E)
 BEC: 10V/2A, 5V/2A
 UART port: 6
 Black box: onboard (16M flash memory)

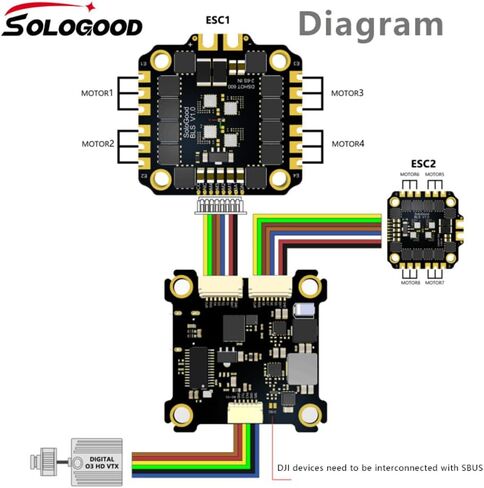

 Number of supported motors: M1-M8

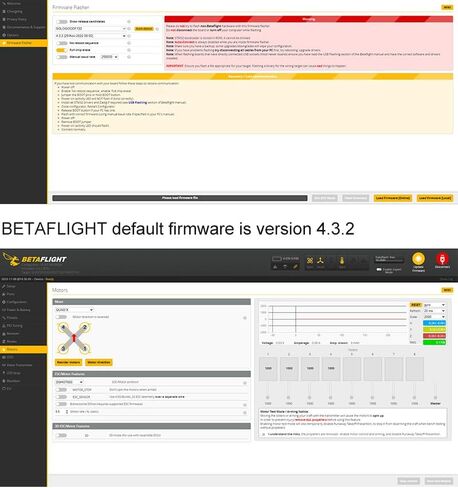

 Firmware name: BETAFLIGHT: SOLOGOODF722
 Input voltage: 3-6S lithium battery (11-26V MAX)
 Output voltage: VBAT
 Installation hole: 30.5x30.5mm (4mm aperture)
 Flight control size: 38.5x38.5mm
 Weight: 8.1 grams
 LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec
indication
 DJI/Vista: Support/6pin
 Electric regulation
 TVS protective diode: Yes
 External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
 ESC/Motor Protocol: DSHOT300/600
 Continuous current: 60A
 Maximum current ：65A
 Installation hole: 30.5x30.5mm (4mm aperture)
