10 pair 8mm Micro Stepper Motor 2-Phase 4-Wire DC 5-6V with Connection line +gear

KWD 5
Brand
Abovehill
Category
Telescopes
Weight
58 g
– 1 +

Special Features

  • 1. This is a precision 8MM micro stepping motor, widely used in digital products such as digital cameras and other small appliances.
  • 2.Suitable for voltage 5-6V, driving current is 0.12A, short-circuit current is 0.14A.

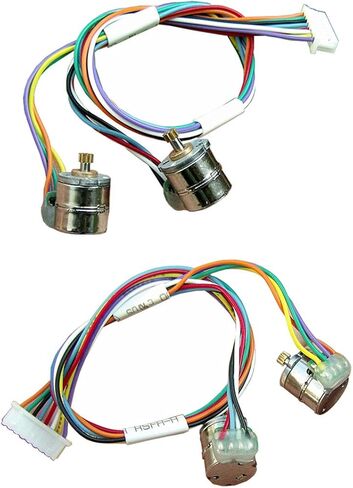

  • 3. Each pair of motors is bundled by two motors, the output shaft length is 4mm and 3.5mm respectively, and the gears are installed separately.
  • 4. Motor diameter: 8mm, motor height: 8.2mm, output shaft diameter: 1.5mm, gear outer diameter: 2.2mm
  • 5. Distribution of long-axis motor connection lines: (blue: A +, black: A-. Red: B +, white: B-) Short-axis motor connection line distribution: (purple: A +, yellow: B-. Orange: B +, green: B-)

Description

product description:
Stepper motor diameter: 8 MM
Height: 8.2 MM
Type: Two-phase four-wire
Long axis (blue: A +, black: A-. Red: B +, white: B-)
Short-axis (purple: A +, yellow: B-. Orange: B +, green: B-)
Phase internal resistance: 39.2 ohms
6 V short-circuit current: 0.14 A
(Estimated phase voltage is 5V-6V, driving current is about 0.12A)
Output shaft diameter: 1.5 MM
Output shaft length: long axis 4MM, short axis 3.5MM.
Outer diameter of copper gear: 2.2 MM (9 teeth, 0.2 modulus)
Shipping list:

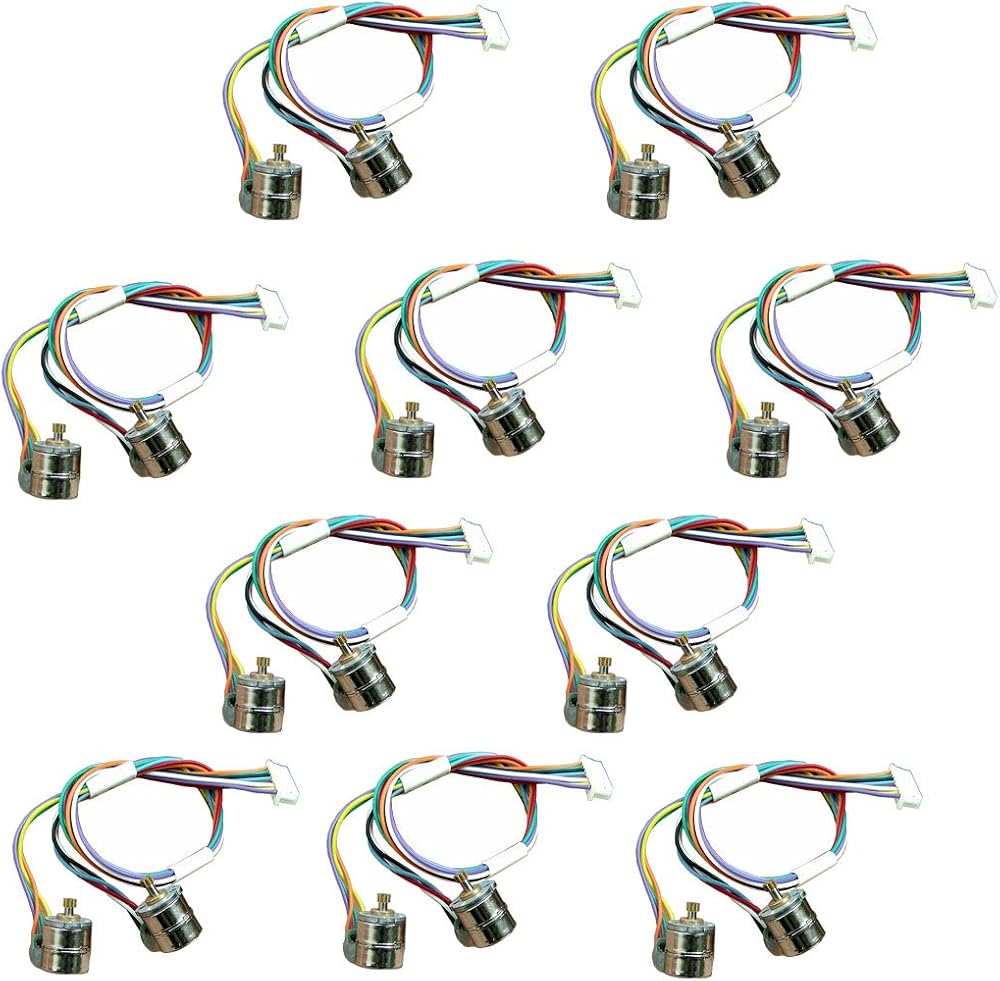

10 pairs of 8mm two-phase four-wire stepper motors
