12V 24V 36V 48V 60V 72V 84Vbattery capacity indicator& Voltage Meter with LCD Display Green Backlight，
Waterproof Monitor Gauge Tester for 3S-26S Lithium Batteries and Lead-acid Batteries
Functions of battery capacity indicator:

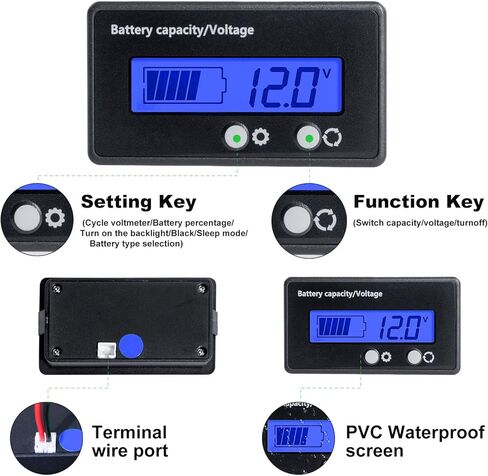

1. Manually switch battery percentage / voltage / power off
2. Automatic recycling display battery capacity / voltage per 2 seconds (Settable)
3. 10s delay auto off (Settable)
4. Double discharge curve selection (Settable)
Specifications:
Color: Black
Weight: 18g
Material of battery capacity indicator: HTN / PCB

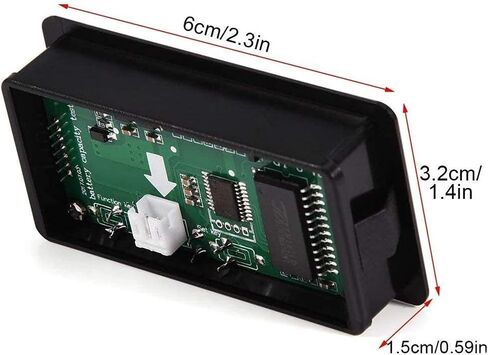

Dimensions: 61.3 * 33.3 * 13.5mm / 2.4 * 1.3 * 0.5in
Wire Length: 30cm / 11.8"
Voltage Range: 6-63 (V)
Circuit Load Current: 5 - 6mA
Storage Temperature: -10 ~ 50℃
Suitable for: 3s-26s 3.7V Lithium Batteries; Lead Acid Batteries 12V, 24V, 36V, 48V, 60V 72V 84V;
Setting Instruction:
1 - Connect the cable to the battery.
2 - Hold down the setting button and plug in the connector at the same time.
3 - Release the setting button and you should see P01. P is the type of battery: P = lead acid, L = lithium, F - lithium iron phosphate.
4 - Press the setting button to select P, L or F.
5 - The number 01 is the number of cells or battery types For lead acid batteries, P: 01 = one 12v battery, 02 = two 12v batteries, etc. For lithium batteries, L: 01 = one 3.7v cell, 02 = two 3.7v cells, etc. For lithium iron phosphate, F: 01 = one 3.2v cell, 02 = two 3.2v cells, etc.
6 - Press the setting button to add 1 to the number, function button to subtract 1.
7 - After setting, e.g., P01, hold the function button down to display S - 1.
8 - Press the setting button to select 1 - 5.
9 - Unplug the connector to save the settings.
10 - Plug the connector back in. Package List:

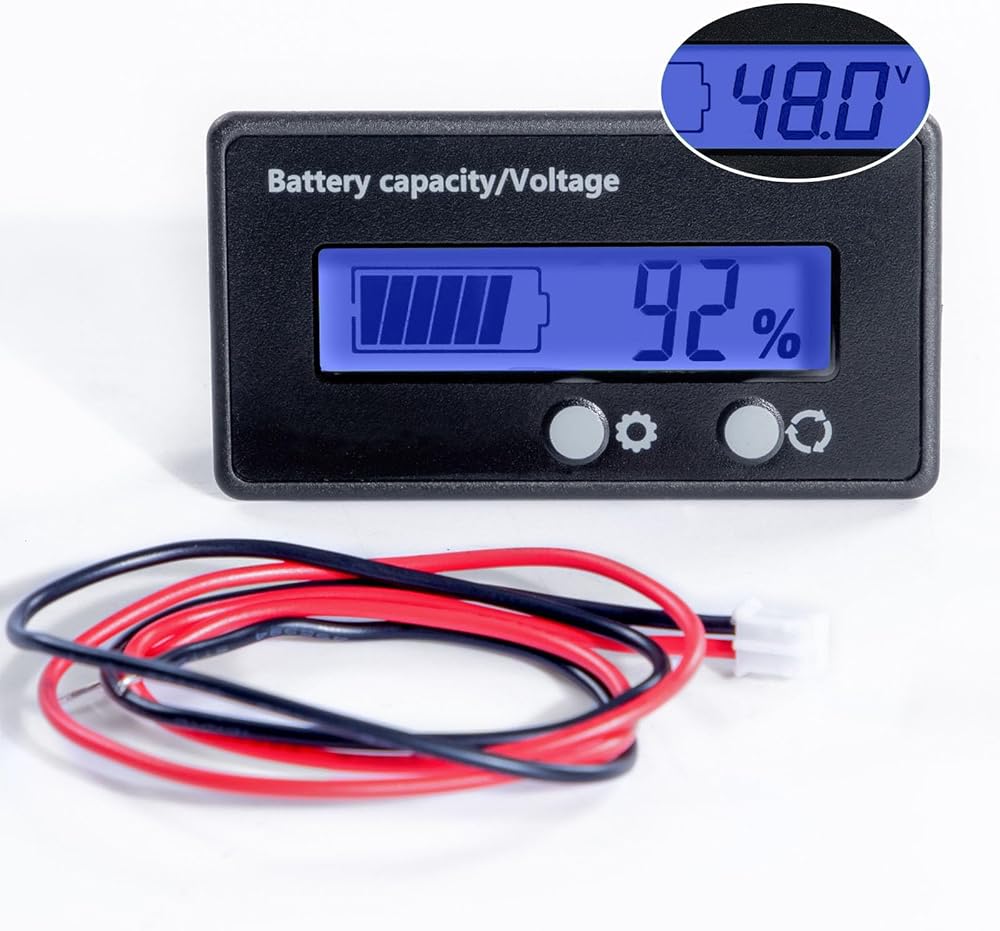

1 x Battery Capacity Voltage Meter with Connecting Cable
