Features:
1. Support 6-port 6.0Gbps SATA III interface.
2. SATA III PHY output swing control and automatic impedance calibration.
3. Support asynchronous signal recovery.
4. Support spread spectrum clock.
5. Support part/dormancy power saving mode.
6. Automatic speed up negotiation.
7. Support BIST and Loopback mode.
8. Support staggered spin up(Optional).
9. Support hot swap.
10. Support asynchronous inform.
11. Support ATAP Drive.
12. Support SWIT based on orders and Fi.

Compliance:
1. Compliant with Serial ATA Port Multiplier Specifications.
2. Compliant with Serial ATA Port Selector Specifications.
3. Compliant with ATA PHY Series Electrical Specifications Revision 1.0
4. Compliant with Annex Specifications ATA Series High Speed Serialization.

Specifications:

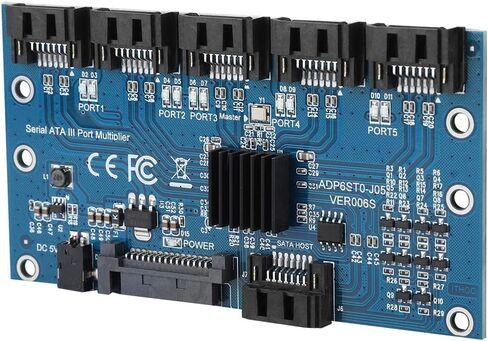

Product: SATA3.0 1 to 5 Expansion Card
Model: ADP6ST0-J05
Product Master: JMICRON JMB575
Product Package: Kraft Box
Product Interface: SATA 7PIN
System: For WINXP, WIN7, WIN8, WIN10
Size: Approx. 10.2 x 5.5 x 0.7 cm/4.02 x 2.17 x 0.28 in

Package List:
1 x SATA3.0 1 to 5 Expansion Card
1 x USB-DC Power Cable
1 x Connection Cable
1 x Screw Bag

Note:
1. This expansion card needs Motherboard or expansion card to support point(SATA Interface Multiplier) Funtion to identify 5 hard disks, common Motherboard SATA do not support such function. If not, only one hard disk can be identified.
2. Do plug in SATA or DC2.5 power cable to charge expansion card.
3. Cable Connection: Plug SATA input cable to Motherboard or expansion card to charge SATA.
