12VDC Windshield Wiper Timer Car Motor 3-30 seconds [ Assembled kit ]

KWD 11.500
Weight
68 g
– 1 +

Special Features

  • Power supply : 12VDC./max. 40mA.
  • Time intervel (without modifications) : adjustable from 3 to 30 seconds.
  • When install the circuit to complete, the windshield wiper switch is operate normal.
  • Can be used for each car.
  • LED indication for operation of relay.

Description

FEATURES

Power supply : 12VDC./max. 40mA.
Time intervel (without modifications) : adjustable from 3 to 30 seconds.
When install the circuit to complete, the windshield wiper switch is operate normal.
Can be used for each car.
LED indication for operation of relay.

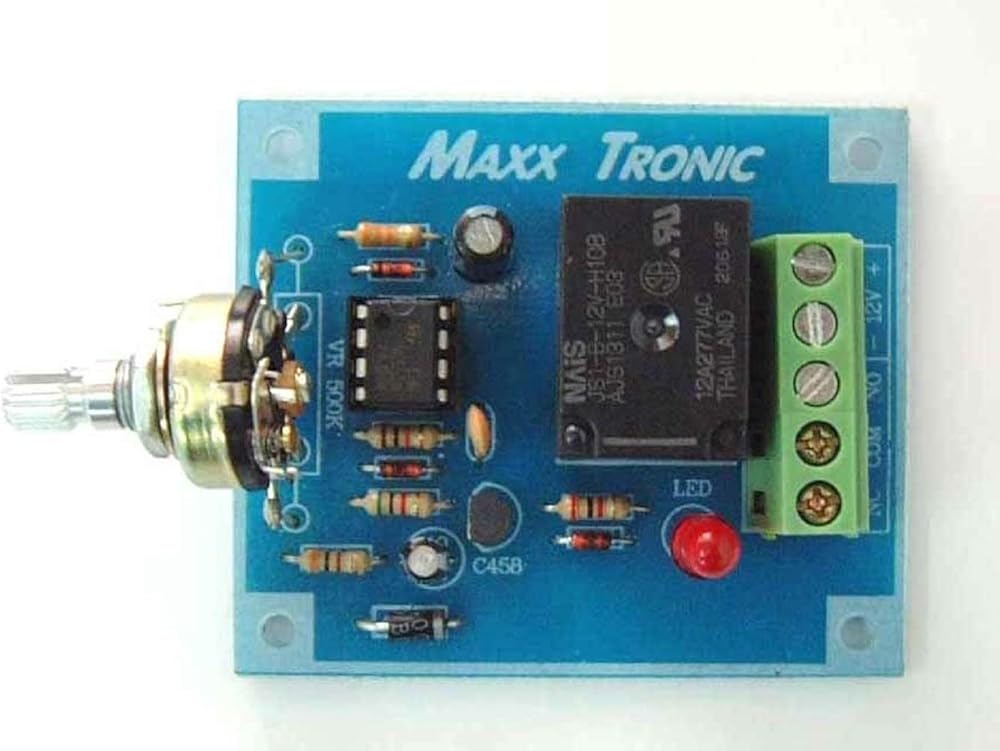

PCB dimension : 2.37"x2.03"
CONNECTOR AND TUNNING

12V point is used for connected to the power supply 12VDC.
NO, COM and NC point is connected to the windshield wiper.
VR 500K is used for adjust the operation time of the windshield wiper.
