Huazu Waterproof 60 Amp Circuit Breaker -- Critical Protection to Your System!

Way of working:
1)Circuit break protection: When the current reaches the cut-off value, the long handle automatically bounces and cuts off the power supply. Generally, it trips in a short-circuit condition. After the fault is eliminated, press the long handle back to the original position to form a path.
2) Manually cut off the power: We need to disconnect the circuit when refitting, and directly press the oval yellow button on the insurance. At this time, the long handle automatically pops up to cut off the power. Connect as above, and then press the long handle back to its original position.
3) No need to replace the fuses, the system can be reset by a simple switch which also offers safe and instant system shut down.

Feature:
High current circuit breaker, providing protection in overload or short circuit conditions, to protect to your system.
Water resistant housing, protective stud insulator included, splash & dust Proof.
Unique push button Reset can also be used as a kill switch, no need to replace the inline fuse.
Self-test, manual reset button, manual control and easy to operate with manual reset arm.
Easy installation and surface mount: can be mounted on panel or firewall.

Specifications:
Power Rating: 60 A
Voltage: DC 12V - 48V (Max)
Stud Size: 1/4"-28
Size: 74mm x 49mm x 45mm
Net weight: 86.9g
Operating Temperature: -32 °c to 82 °c (-25 °f to 180 °f)
Storage Temperature: -34 °c to 149 °c (-30 °f to 300°f)
Package Includes: 1 x 60A Circuit Breaker

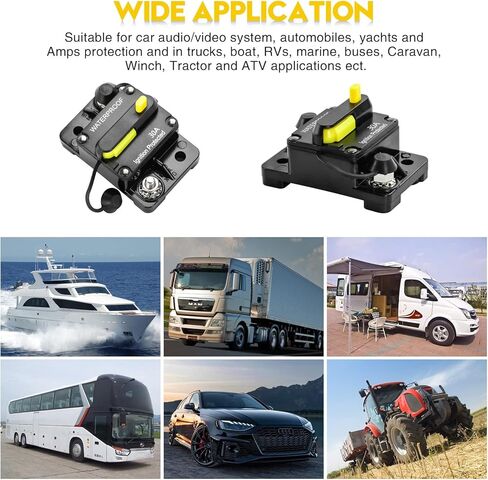

Application:
Suitable for car audio/video system, automobiles, yachts and Amps protection and in trucks, boat, RVs, marine, buses, Caravan, Winch, Tractor and ATV applications ect; Also used in battery charges and DC sound amplifier system.
