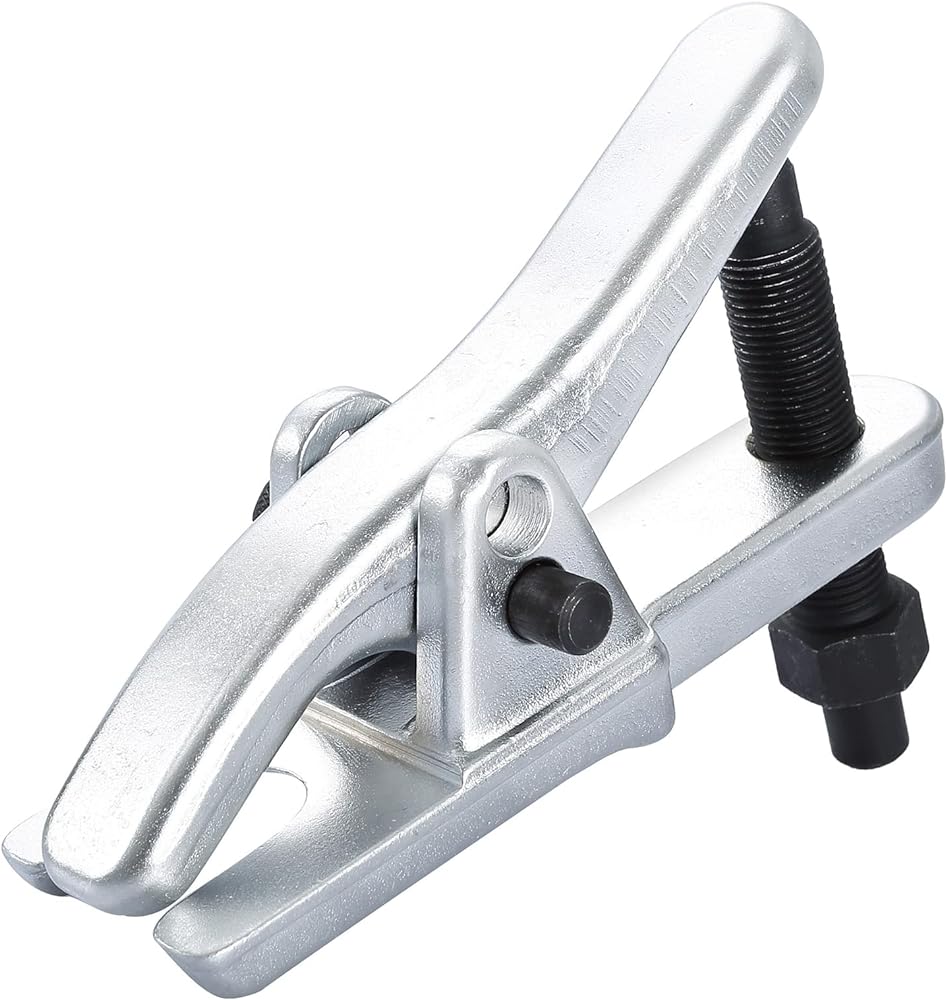

ATP Universal Ball Joint Separator

Product Description

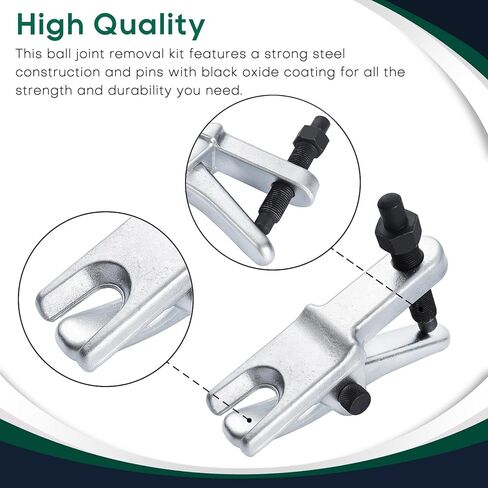

This ball joint removal tool is constructed from commercial-strength cast steel with hardened steel pivot pin and jackscrew for regular shop use, sturdy and durable.
The tie rod removal tool is designed for separating arms, tie rods, and ball joints on cars, trucks. ATP ball joint press is designed specifically for quick and easy separation of a vehicle's ball joint from the spindle support arm.

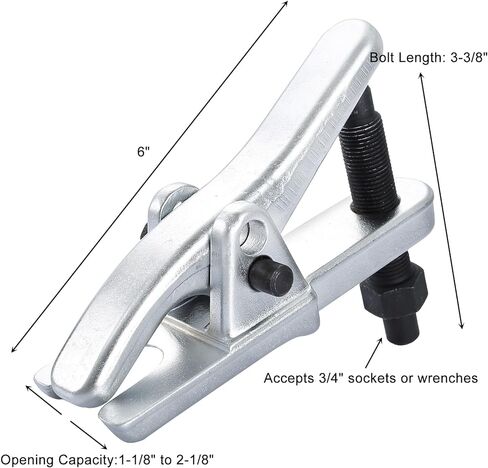

The tie rod separator tool adopts scissors-type design, accepts 3/4" sockets or wrenches, 4/5" (20mm) fork opening, 9/10” (48mm) adjustable height, the ball joint separator can be adjusted to 2 sizes for wider working areas and to accommodate various sizes and vehicles.

Specifications:

Material: tempered drop forged steel
Size: 22mm
Maximum opening capacity: 1-1/8" and 2-1/8" (30mm and 56mm)
Jaw Spread: 7/8"
Throat Depth: 2-1/4"

Package Included:

1 x Universal Ball Joint Separator

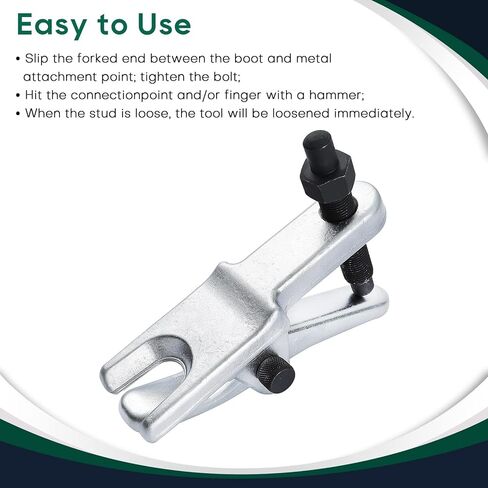

How to Use:

Step 1: Slip the forked end between the boot and metal attachment point, be sure the pivot finger is squarely on the threaded end.
Step 2: Tightening the bolt until you have a good amount of resistance.
Step 3: Tap the attachment point and or the finger with a hammer and tighten some more and tap again.
Step 4: When the stud comes loose, it will be all at once as the tool falls free and you will hear a “pop”.

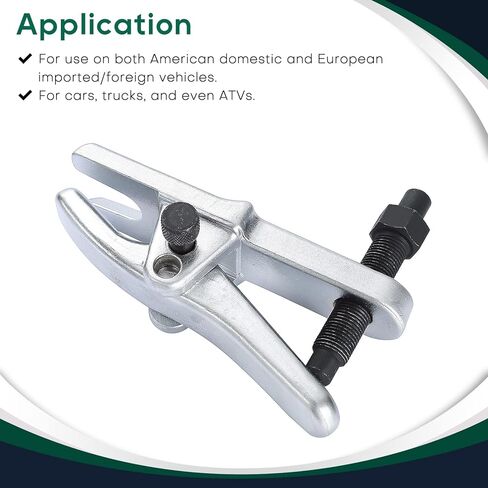

Application

The Versatile and Universal ball joint separator tool can use on both American domestic and European imported/foreign vehicles, fit for cars, trucks, and even ATVs.
