Wireless In Ear Monitor System 4 Receivers Bodypacks 2*40 channel
FCC Frequency : 559 Mhz --- 603Mhz
Main Features
UHF band phase lock PLL
Among the band of 32MHz, the preset 40 frequencies can be arbitrary switching
Dynamic expansion circuit, greatly improve signal-to-noise ratio
Elegant liquid crystal display panel
With power and RF receiving indicator lamp
With using two AA batteries and efficient power circuit, long service time
The transmitter adopts balanced and unbalanced sharing socket
The transmitter is with output monitoring phone jack

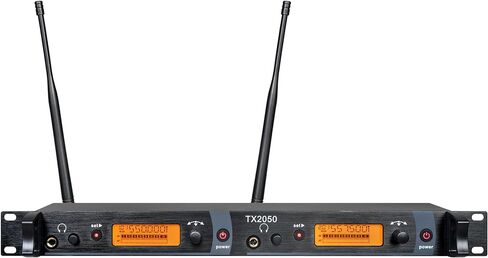

Transmitter:
Case specification: standard 1U
Case material: metal panel
Oscillation mode: PLL synthesized
Frequency stability: ±0.005%
Frequency interval: 32MHz
Preset Channel: 80 channel separately set 2 groups
Operate mode: manual adjust
Max Deviation: ±48KHz
Frequency response: 50Hz~15KHz±3dB
Transmit output power: 100mW(50Ω)
Harmonic radiation:
AF input: XLR, φ6.35mm jack
Earphone load impedance: ≥16Ω
Current consumption: DC 12V/250mA
Antenna socket: TNC socket(50Ω) fixed 1/2λReceiver:
Operate mode: manual adjust
Receiving mode: single tuning
Sensitivity: deviation 25KHz, with connecting 7dBuV, S/N>78dB
Comprehensive S/N ratio: >94dB(1KHz-A)
Comprehensive T.H.D:
Earphone load impedance: ≥16Ω
Volume output adjusts: adjust when using
Current drain: 3V/120mA(Under the median degrees of the volume control)
Package Include:
Transmitter × 1

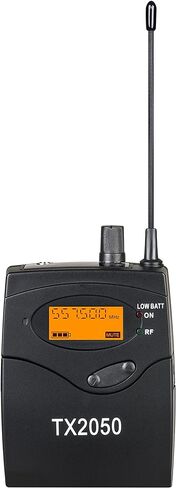

Bodypack receiver ×4
Antenna × 2
Earphone ×4
Cable Line × 4
Power Adapter × 1
User Manual × 1
