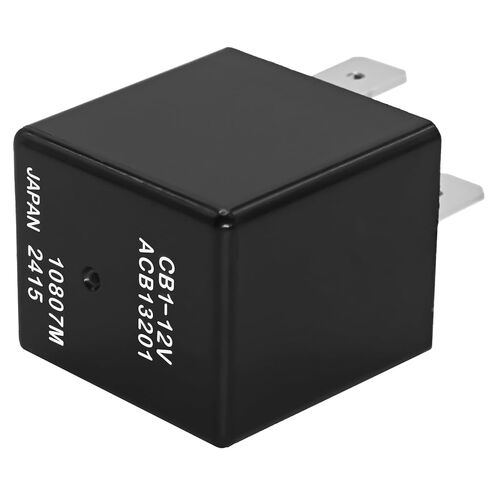

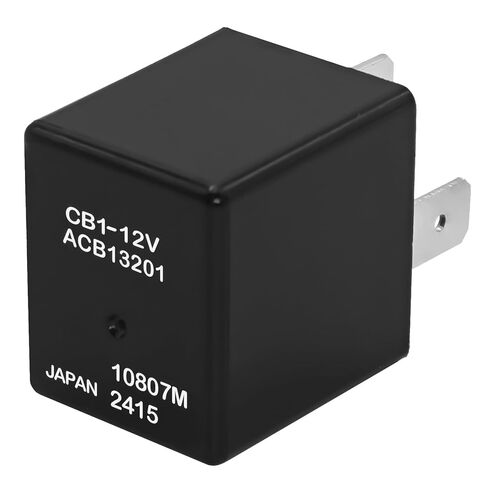

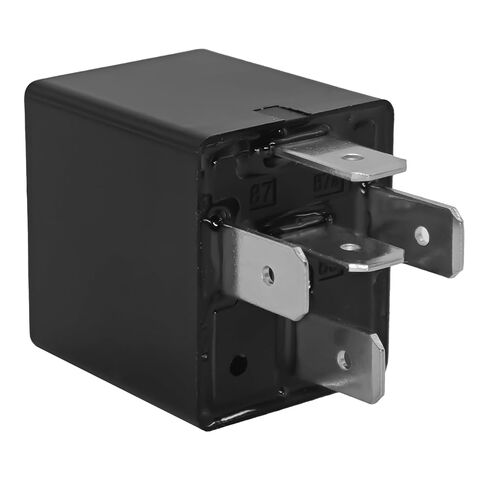

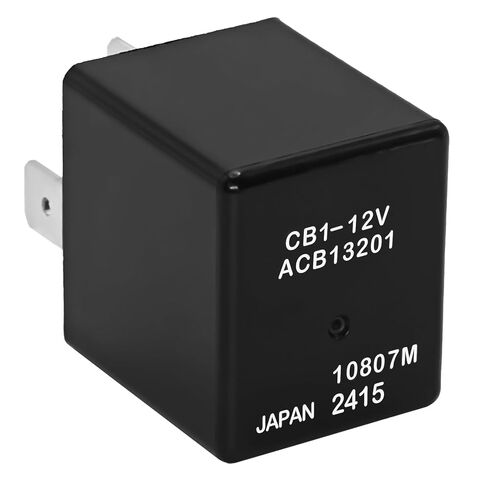

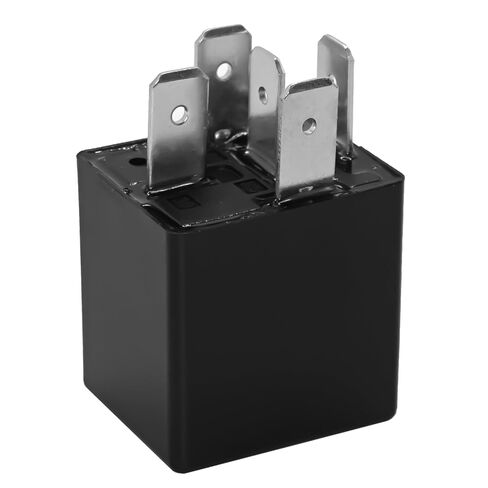

CB1-12V ACB13201 Relay, 5 Pins Plug in Mini-ISO Relay for Automobiles Cell Motors, Air Compressor, ABS, EPS, Multiple Support Relay 12VDC 40A

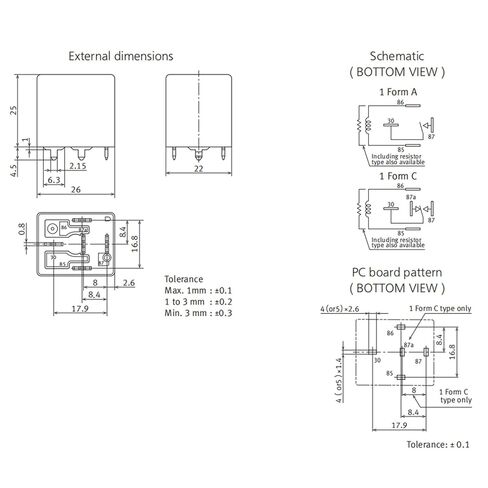

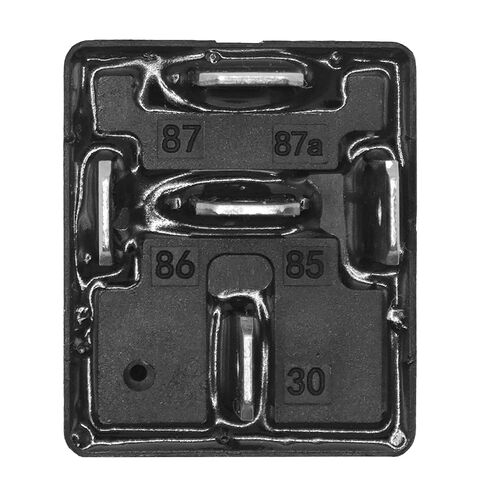

Mini-ISO Terminal Arrangement: The CB1-12V 40A relay comes with an Mini-ISO (International Organization for Standardization) terminal arrangement, which is widely used in the automotive industry. This makes it easy to integrate into existing systems and wiring harnesses.
Compact and High Capacity: Despite its small size, the CB1-12V 40A relay is capable of handling up to 40A of current. This makes it ideal for use in a variety of applications where space is at a premium but high capacity is required.
Heat-Resistant Type: The CB1-12V 40A relay features a heat-resistant design that allows it to operate reliably even in high-temperature environments. This makes it a great choice for use in engine compartments or other hot areas.
Built-In Resistor Type: For applications that require a built-in resistor, the CB1-12V 40A relay is also available in this configuration. This helps to simplify wiring and reduce the overall size of the system.
High-Quality Construction: The CB1-12V 40A relay is constructed using high-quality materials and manufacturing processes, ensuring long-term reliability and durability.

Nominal Coil Voltage: 12 VDC

Contact arrangement: 1 Form C

Contact material: Ag alloy

Rated switching capacity (resistive) :40 A 14 V DC

Operate time (at rated voltage) : Max. 15 ms(at 20°C, without contact bounce time).

Release time (at rated voltage) : Max. 15 ms (at 20°C, without contact bounce time)(without diode) .

Vibration resistance:10 to 500 Hz, Min. 44.1 m/s2 (Detection time: 10 μs)

Operating ambient temperature:Ambient temperature: -40 to +85°C, Humidity: 5 to 85% RH (Avoid icing and condensation)

Weight: Approx.33 g
