4-Ch RS485 to RJ45 Ethernet with POE Serial Server Adapter Industrial Isolated Serial Module, 4-CH Independent RS485, Support Modbus Gateway/MQTT/JSON, Bi-Directional Transparent Transmission

KWD 26
Brand
waveshare
Weight
36 g
– 1 +

Special Features

  • 4-CH RS485 TO POE ETH ---This is a multi-functional device data acquisitor / IoT gateway with 4-ch RS485 and an Ethernet port with POE, small in size, easy to install, and cost-effective. Bi-directional transparent data transmission between 4-Ch RS485 and Ethernet. 4-ch RS485 can work independently without affecting each other at the same time, enabling more effective data transmission.
  • 【Multi Power Supply Options】 Support PoE Ethernet port power supply, Suitable for IEEE 802.3af PoE standard. Support Screw Terminal for Power Supply, DC 6~45V Wide Voltage Range Input .
  • Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc. Suitable for Modbus networking upgrade, can be used with specific configuration software.
  • 【Multi hosts roll-polling Support】Different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices. 【Multi configuration methods】Supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address.
  • Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock proof performance

Description

Overview
This is a multi-functional device data acquisitor / IoT gateway with 4-ch RS485 and an Ethernet port with POE , small in size, easy to install, and cost-effective.
It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, meeting various application scenarios.

Specifications

1. Basic Introduction
Product Type: Serial server, Modbus Gateway, MQTT Gateway
Basic Function: Bi-directional transparent data transmission between RS485 and Ethernet
Communication interface: RS485 port x 4, Ethernet port x 1
Power supply: DC 6 ~ 45V screw terminal, or PoE port
Isolation Protection: Power isolation, Signal isolation

2. Communication
Ethernet: RJ45 with PoE support, IEEE 802.3af compliant, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port: Isolated RS485 (the 4 channels can receive and transmit independently at the same time)

3. Serial specification
Baudrate: 300 ~ 115200 bps
Parity bit: none, odd, even, mark, space
Data bit: 5 ~ 9 bits

4. Software Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration: host, web browser, device management functions library
Communication method: TCP/IP direct communication, VCOM
Operating mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast

5. Others
Operating temperature : -40℃ ~ 85℃
Humidity range: 5% ~ 95% relative humidity
Dimensions: L × W × H: 91.0 × 64.5 × 24.2 mm

Online Development Resources /User Manual :
bit.ly/3NGN9Sb

Package Content
4-CH RS485 TO POE ETH (B) x1

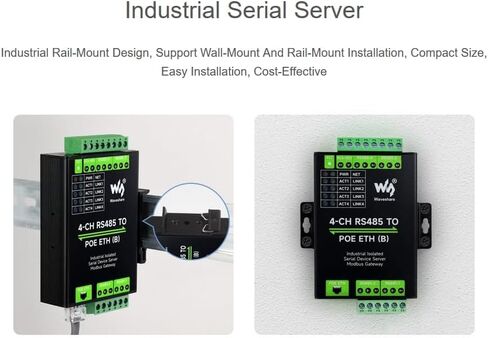

Rail-mount buckle x1
Screwdriver x1
Screws pack x1
