Compatible P/N:

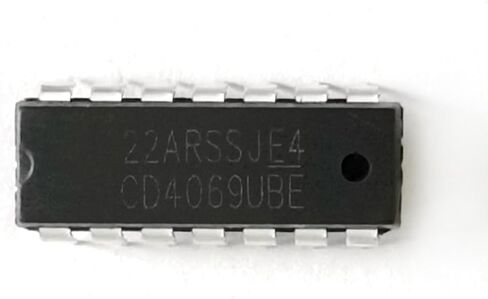

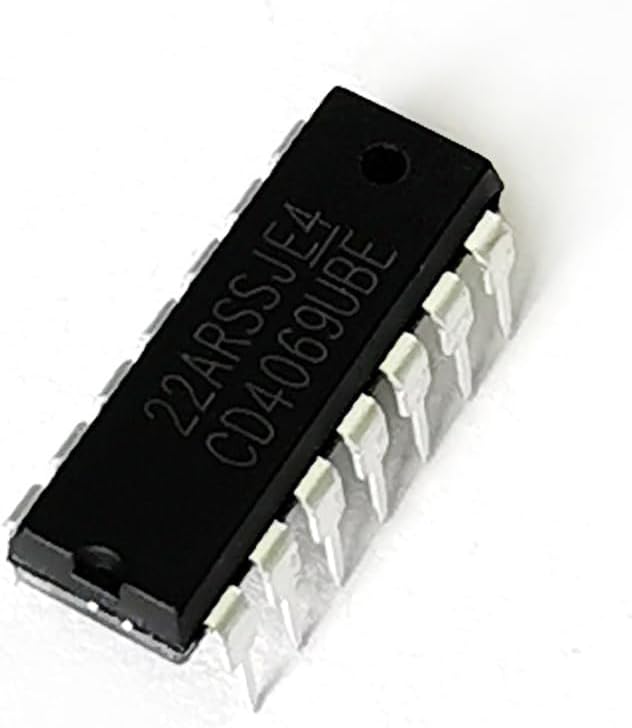

CD4069 CD4069U CD4069UB CD4069UBE CD4069L CD4069BE
Description:
Condition: 100% Brand New And High Quality
Material: Electrical Components
Color: See Pictures
Encapsulation: DIP-14
Logical type: inverter
Electrocircuit: 6
Input Number: 6
Voltage - power supply: 3V ~ 18V
Current - static (maximum) 1 A
Current - Output High, low 3.4mA, 3.4mA
Logic Level - Low: 1V ~ 2.5V
Logic Level - High: 4V ~ 12.5V
At different V, the maximum propagation delay of CL is 50ns @ 15V and 50pF
Operating Temperature: -55°C ~ 125°C
Mounting Type: Through Hole
Size: 19.2mm x 8.8mm x 7.1mm
Quantity: 10 Pcs
CD4069UB types consist of six CMOS inverter circuits, these devices are intended for all general-purpose inverter applications where the medium-power TTL-drive.
NOTE: Kindly compare your original item with the photos provided for the listing to make sure that you are purchasing the correct part. we don't provide technical assistance please make sure you are familiar with the product before purchasing. apologize in advance.
