Extend your Gigabit or Fast Ethernet Network Over Single Mode Fiber Up to 20 km With Ease
AN-UMGSM-AS-20J-ST Will Automatically Detect 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port - You just need plug in the cables and it will work right away!
Powering it up? Easy, it will come with AC power adapter in set, just plug it!
All These Important Features Are All Supported:
Compliant with IEEE 1000Base-T and 1000Base-LX
One 10/100/1000Base-T RJ-45 port autosensing featured
One 1000Base-LX Single Mode Dual Fiber port Port with ST type connector - up to 20 km distance
Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-LX
Power supply: 100 to 240VAC 50 to 60Hz
Dimensions: 70.5mm(L)X94mm(W)X26.5mm(H)
Environment: Relative humidity; 5% to 90%
Operating temperature: 0 to 70 degree celsius
CE, FCC, ROHS, LVD certified
Supports Jumbo Ethernet frames up to 9000 bytes (if needed, configurable by dip switches)
Supports LLF feature - Link Loss Feature - (if needed, configurable by dip switches)
Media converter will extend Your LAN network with any standard Ethernet interface to distances with 2 km or less - you no need to use attenuator also for significantly less distances than 2 km as well.

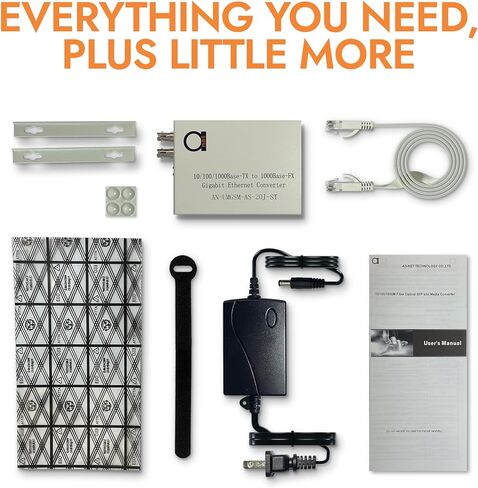

Setup of these units are really easy as the 3 steps shown in picture gallery, and all default settings will work for all of your cases, but for sophisticated users we had created some more customized settings available via dip switches on unit's back panel.
It's always good to have versatile and adaptive unit to all Your cases!
Questions during installation? Questions during considering a purchase? We are always here to answer You and guide You through!
