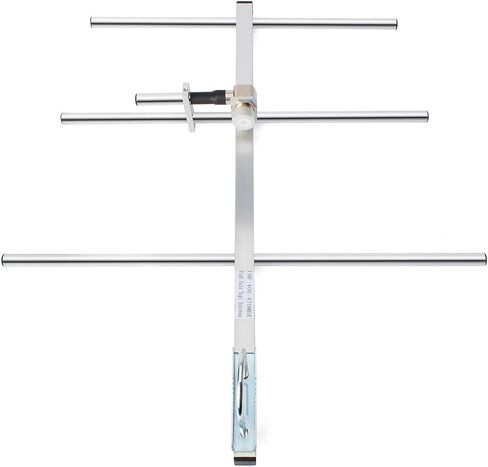

The length of the beam: 43cm; The length of the element: 38cm (the longest one); Weight: 0.3Kg
Frequency range: UHF 400-470MHz; Gain: 7dBi (430MHz); Max power: 100W; Impedance: 50Ω; VSWR: less than 1.5
Rated Wind Velocity: 60 m/s; Connector: SL16 Female; The diameter of mounting mast: Ø30~Ø40 mm
Most parts are made of aluminum alloy, lightweight and compact, easy to assemble and install. It can be installed in an open environment in the front direction, such as an apartment balcony. It is also very convenient to use on the car.
The longer SL16 female connector is suitable for coaxial cable with SL16 male connector. The antenna works best when the element is perpendicular to the ground. Product specifications and installation instructions are included with the package.
