Features:
1. Has overvoltage protection, undervoltage protection and voltage display (voltage measurement), safer and reliable to use.
2. Both overvoltage protection and overvoltage recovery values are adjustable, and the overvoltage protection action time is adjustable.
3. Both the undervoltage protection value and the undervoltage recovery value are adjustable, and the undervoltage protection action time is adjustable.
4. The fault recovery delay time and power‑on delay time are adjustable for better performance.
5. This current protector has the function of reset mode selection, fault query and factory reset.

Specification:
Condition: 100% brand new
Item Type: Current protector
Color: As pictures shown
Material: Plastic
Optional Specification: 40A, 63A, 80A

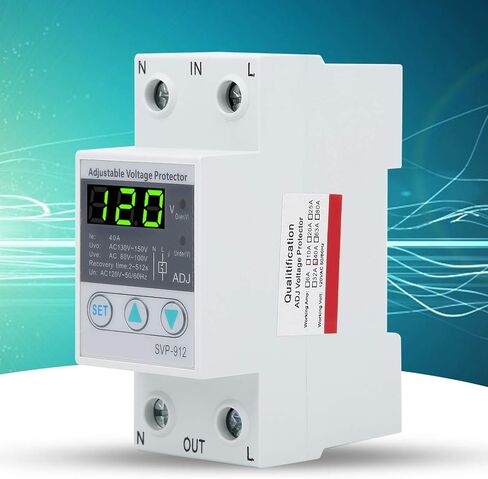

Model: SVP-912
Rated Voltage: 120VAC 50 / 60Hz
Rated Current: 40A, 63A, 80A
Overvoltage Protection Value Range: 130V-150V-OFF adjustable (default 140V)
Overvoltage Recovery Value: Adjustable from 129V to 149V (default 250V)
Overvoltage Protection Action Time: 0.1-10s (default 0.1s)
Undervoltage Protection Value Range: Adjustable from 100V-80V-OFF (default 90V)
Undervoltage Recovery Value Range: 81V-99V (default 95V)
Undervoltage Protection Action Time: 0.1-10s (default 0.1s)
Failure Recovery Delay Time: 2-512s (default 60s)
Delay Time after Power-On: 2-255s (default 2s)
Power Consumption: ≤2W
Electrical Machinery Life: ≥ 4000 times
Size: Approx.81 x 36 x 60mm/3.2x1.4x2.4in
Install DIN Rail
Working Environment Temperature: -25℃-+40℃
Humidity: Altitude: ≤2000m/6561.7ft
Features:
1. Overvoltage protection
2. Undervoltage protection
3. Voltage display (voltage measurement)
4. Overvoltage protection value is adjustable
5. Overvoltage recovery value is adjustable
6. Overvoltage protection action time is adjustable
7. Adjustable undervoltage protection
