◮Fitment:
For 1999-2003 E-350 Club Wagon
For 1999-2003 E-350 Super Duty
For 1999-2003 E-450 Super Duty
For 1999-2003 E-550 Super Duty
For 1999-2003 Excursion
For 1999-2003 F-250 Super Duty
For 1999-2003 F-350 Super Duty
For 1999-2003 F-450 Super Duty
For 1999-2003 F-550 Super Duty
◮Product Feature :
☐Withstand temperature:-50 °F to 260 + °F
☐Length: 13in two, 11.8 in one
☐Tube plus sleeve outer diameter:1.12in
☐Tube without tube sleeve outer diameter: 0.9in
☐Connector material:steel
☐Pipe material:synthetic rubber
☐Working pressure:400 Bar / 5,800 PSI
☐Minimum burst pressure:1,600 Bar / 23,200 PSI
◮Attribute:
☐Category:Oil Supply Lines/HPOP Hoses
☐Placement:Engine Compartment
☐Applicable Engine Model: 7.3L 445Cu.In.V8 DIESEL OHV Turbocharged
☐Manufacturer Part Number: 9903HP3
☐Interchange Part Number: 904-198,904-197,904-196 -INCLUDES CROSSOVER LINE
☐Other replaceable part numbers: YC3Z-9J323-E, YC3Z-9J323-F, F81Z-9J323-E
◮Installation:
1. You need to prepare tools such as quick disconnect tool, snap-on semi-deep rotary tool, gloves, etc.
2. Open the front hood of the car.
3. At this point you can see the old tubing and prepare the corresponding new tubing that needs to be replaced.
4. (Note: connectors of the same specifications should be used.)
5. Use the quick disconnect tool to disconnect the connector that needs to replace the tubing.
6. The tubing can be pulled out directly by hand.
7. (Note: Do not throw back the spring valve, carefully save it.)

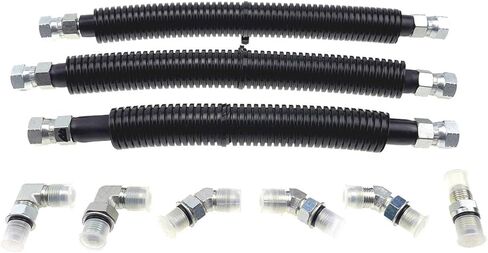

◮Package Included:
2 X HPOP oil hoses
1 X Crossover hose
3 X elbow connection (45 degree)(interconnect installed)
1 X elbow connection (90 degree) (interconnect installed)
1 X sealed elbow Connection (90 degree)(interconnect installed)
