Savant Digital Water Meter 3/8" NPT with LCD Display - 8000T-QF14
The DigiFlow 8000T can monitor a single filter - flow volume or time elapsed. Users can program the flow volume and time by themselves. The DigiFlow 8000T will count down from the programmed flow volume or time value, and generate an audible alert when it reaches the end.
⚡Electrical⚡:
Operating Voltage: 3 DC Volts
Operating Current: 1.0 mA (work), 0.015 mA (sleep)
💧Flow Rate💧:
3.72 gpm, 14.1 lpm
Min. 0.40 gpm, 1.5 lpm
⚙️General⚙️ :
Temperature : 0~40℃ (32~104 ℉)
Pressure : Max. 6.0 bar (85 psi)
Weight : 140 g (5.38 oz)
Accuracy : +/- 10%
Connection : 3/8 inch NPT Female
📦️Content 📦️:
1. User Manual
2. AAA alkaline batteries x2
3. Quick fitting 1/4"OD-3/8"NPT@2PCS
📢Instruction of selecting Gallon mode:
1️⃣Press and hold the 'RESET' button for about 8 seconds until the data resets to zero and then release.
2️⃣Wait for the display to turn off, then remove the battery.
3️⃣Keep pressing the “RESET” button when re-install batteries.
4️⃣Release the button when you hear a long "beep" sound.
5️⃣The mode has now been successfully changed.
6️⃣Allow the screen to turn off to save this mode change.
⚠The minimum water flow rate is 0.3 gallon/min.

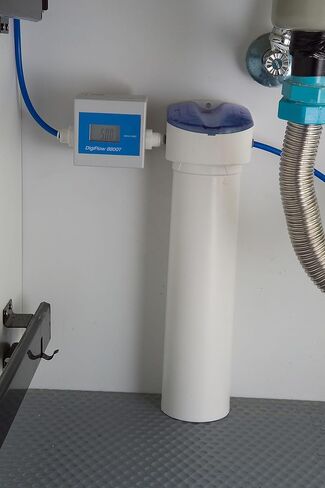

⚠ It must be installed before the Faucet and the outlet of the water purifier.
⚠If you are using an RO system, it should be installed after the pressure tank.
