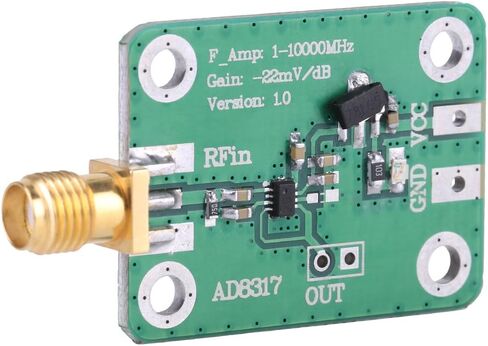

The product is designed by using AD8317 chip, and is used for RF power detection.
Can detect power in -55dBm to -0dBm of an RF , so that the RF is converted to DC voltage output.
The greater the amplitude or power of the RF , the higher the output voltage, and the output voltage is directly proportional to the logarithm of the input amplitude, thus expanding the dynamic range of the detected , which ranges reach 55dB.
It can be widely used in radio frequency detection, power measurement, environmental field strength detection.
It can also be used as part of automatic gain control and automatic level control.
