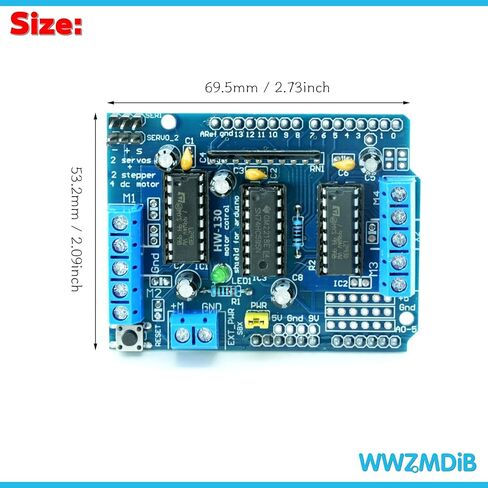

2Pcs L293D DC Stepper Motor Drive Shield Expansion Board for Arduino Raspberry Pi DIY Experiments

Coupling of two 5V servo motor (servo) ports to support high resolution and high accuracy timer jitter-free drives.
PMM speed control of up to four bi-directional DC motors with resolutions up to 0.5%.
Forward and reverse control of up to two stepper motors supporting single/dual step control, interleaved or micro-step control, and rotation angle control.
Each bridge provides 0.6A (1.2A peak) with thermal cutoff protection and supports a voltage range of 5V to 36V.
Pull-down resistors ensure that the motor remains stopped at power-up, large terminal blocks make wiring easier (10-22AWG), and external power terminals are supported to ensure separation of logic and motor drive power.
With reset button and two large terminal external power terminals.

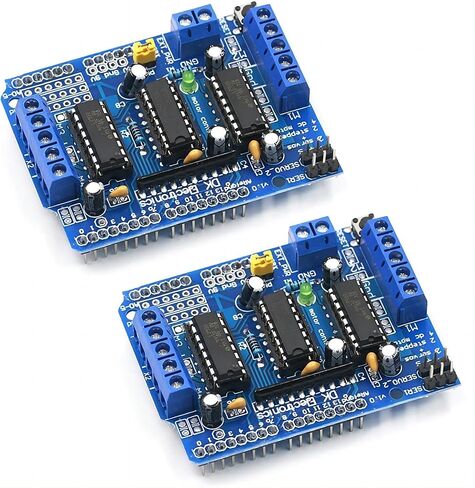

WWZMDiB 2Pcs L293D DC Stepper Motor Drive Shield Expansion Board for Arduino Raspberry Pi DIY Experiments
