5 Pcs Analog Piezo Ceramic Vibration Sensor Detect Vibration 3.3V / 5V Analog Signal Output Module with Cable for Arduino DIY Kit

KWD 3.500
Brand
DAOKAI
Category
Sensors
Weight
40 g
– 1 +

Special Features

  • 🔢[Description]This Ceramic Piezo Vibration Piece Sensor buffers a piezoelectric transducer that responds to strain changes by generating a measurable output voltage change which is proportional with the strength of vibration. So you can know the extent of vibration.
  • 🔢[Principle]The vibration sensor is simulated based on the piezoelectric ceramic sheet, which uses the piezoelectric ceramic to generate the inverse transformation process of the vibration for the electric signal. When the piezoelectric ceramic sheet vibrates, an electrical signal is generated at the signal end of the sensor.
  • 🔢[Feature]Different from digital vibration sensor that only accounts times, this analog one can tell extent of vibration.When the piezoelectric ceramic shocking will generate an electrical signal, controller analog port can be perceived slight vibration signals, also can be realized with vibration interactions related works, such as electronic drums.
  • 🔢[Application]Can be used to detect vibration, DIY small experiments, etc.Suitable for college students/engineers/technicians/personal DIY/electronic enthusiasts, etc.
  • 🔢[Package includes]You will get 5 x Analog Piezo Ceramic Vibration Sensor Module, 1 x 15Pin Female to Male Cable.

Description

Product Description：
This sensor is an analog vibration sensor based on piezoelectric ceramics, which uses piezoelectric ceramics to generate an inverse transformation process of vibration for electrical signals. When the piezoelectric ceramic sheet vibrates, an electrical signal is generated at the signal end of the sensor.

Product parameters：
Working voltage: 3.3/5V
Working current: Operating temperature range: -10°C to +70°C

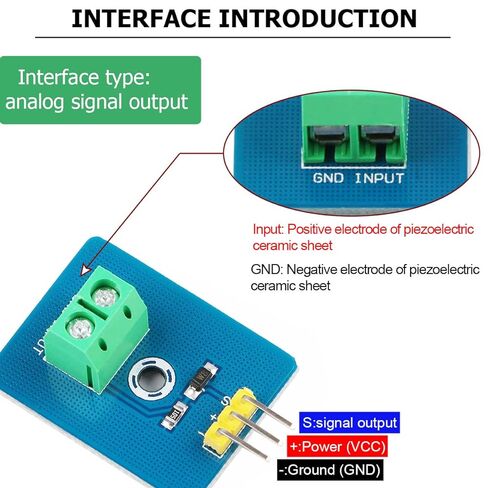

Interface type: analog signal output
Pin definition: S signal output, + power supply (VCC), - ground (GND)
Input: Positive electrode of piezoelectric ceramic sheet
GND: Negative electrode of piezoelectric ceramic sheet
Dimensions: 30x23mm/1.18x0.91in
Weight size: 5g

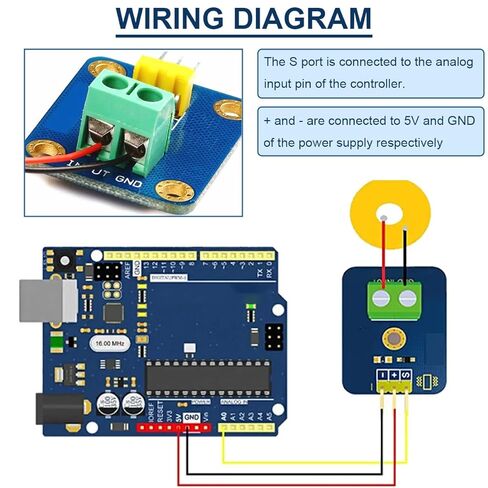

Features:
1. S-port is connected with the controller's analog input pin.
2. 5V and GND are respectively connected the power supply of + 5V and GND.
3. Input and Gnd are already connected with the piezoelectric ceramics' positive and negative.

Package includes:
5 x Analog Piezo Ceramic Vibration Sensor Module
1 x 15Pin Female to Male Cable
