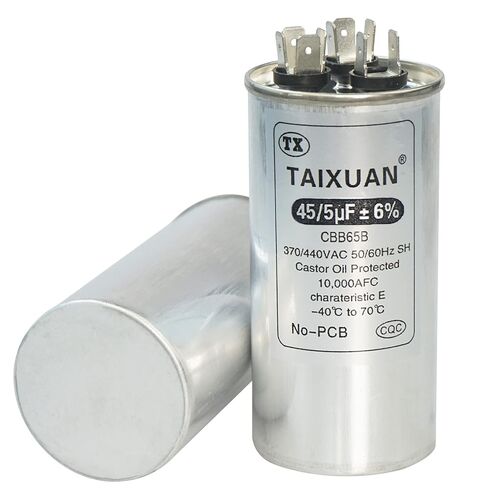

45/5 uF Capacitor 45+5 MFD 370V/440VAC CBB65 Round Dual Run Start AC Capacitors for Air Conditioner AC Unit Fan Motor Start or Heat Pump or Condenser Straight

KWD 4.500
Brand
TAIXUAN
Model45/5 UF
– 1 +

Special Features

  • TAIXUAN 45+5 uf or 45+5 MFD 440 Volt AC Capacitor. Replaces BOTH 370 VAC & 440 VAC capacitors
  • Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ , Safety rated: 10,000 AFC
  • Capacitor dimension: Diameter(1.97 inch) Height(4.92 inch), Cylindrical aluminum outer shell, With pressure-isolation explosion-proof device.
  • Built to the TOUGHEST USA standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001
  • Replacement for 97F9895 , Z97F995 , 97F9895BZ3 , 27L880 , TRCD455 , TRCFD455 , PRCFD455 , 27L889 , 97F9851 , 97F9851S , 12788 , RC0114 , Z97F9895 , 97F9895 , TT-CAP-45/5/440R , HC98KA046 , TP-CAP-45/5/440R , CAP050450440RT , HC98JA046 , HCKS450D050R440Z , 00662441180262.

Description

A capacitor is an electric component that temporarily stores an electrical charge and ACcapacitor is a key component to start air conditioner motors. Round cylinder-shaped dual runcapacitors are commonly used for air conditioning, it can help in the starting of the compressorand the condenser fan motor. This capacitor is used for start-up and operation of AC motorswith frequency of 50Hz/60Hz such as Industrial Grade Replacement for CentralAir-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
Model: CBB65B（Universal model）
Shell material: Aluminum
Dielectric Material: Polypropylene
Capacity: 45+5uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter(50 mm/1.97 inch) Height(125 mm/4.92 inch)
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
