Digital Tachometer, Tachometer RPM Tester, Handheld Digital Photo Tachometer Non- Tach Meter Range 2.5RPM-99,999RPM LCD Display Motor Speed Meter with 3 Reflective Tape

KWD 6
KWD 6.500

Weight
151 g
1 +

Special Features

  • [Stable Performance]: This tach meter is a non-contact handheld digital tachometer with stable performance
  • [Auto Record]: This tachometer can automatically record the maximum value, min value and last value in 0.8s(over 60RPM)
  • [Specification]: Measuring range: 2.5RPM - 99,999RPM; Measuring distance: 50-500mm / 2-20in
  • [Battery Powered]: It needs 1 * 9V 6F22 battery as power supply; Battery is not included in the package
  • [Application]: The LCD tachometer is widely used in motor, wheels, lathe, electrical fan, paper making, plastic industry, washing machines, car making

Description

Features:

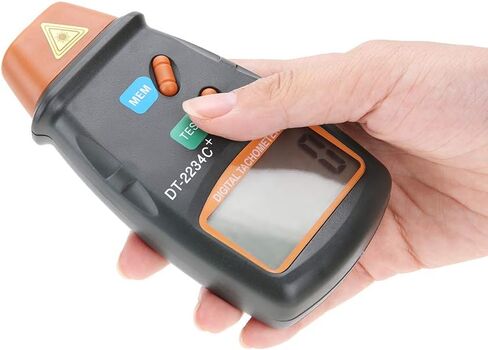

1.This is a non-contact handheld digital photo tachometer with stable performance.
2.Wide measuring range from 2.5RPM to 99999 RPM and high resolution of 0.1RPM or 1RPM.
3.High sampling frequency, clear LCD display, high measuring accuracy.
4.This tachometer can automatically record the maximum value, min value and last value.
5.With auto range, low battery indication and other functions.
6.Wide used in the field of motor, wheels, lathe, electrical fan, paper making, plastic industry, washing machines, car making, etc.

Specification:
Model: DT-2234C+
Material: ABS Plastic
Display: 5-digit 18mm(0.7") LCD Display
Measuring Range: 2.5RPM - 99,999RPM
Resolution: 0.1RPM at 2.5-999.9RPM, 1RPM at 1000-99,999RPM
Accuracy: ±(0.05%+1 digit)
Measuring Distance: 50-500mm / 2-20in
Time Base: 6MHz Quartz Crystal Oscillator
Range Selection: Auto range
Sampling Time: 0.8s(over 60RPM)
Power Supply: 1 * 9V 6F22 Battery(NOT included)
Power Consumption: Approx. 30mA
Working Temperature: 0℃ ~ 50℃(32℉ ~ 122℉)
Item Size: 130*68*26mm / 5.1*2.7*1.0in
Package Weight: Approx. 150g / 5.3oz

Package list:
1 * Digital Tachometer
1 * Blue Bag
3 * Reflective Tape
1 * User Manual(English)
