Upgraded Tinysa Ultra：Hugen's upgraded TinySA Ultra V0.4.5.1 offers a 4-inch touchscreen with 480x320 resolution, covering 100kHz to 5.3GHz. It features ESD protection for enhanced durability, a built-in 32GB micro SD card for storage, and a linear power supply to minimize noise. Ideal for amateur radio, it's a cost-effective alternative to bulky test equipment
Wide Frequency：With an extended range up to 5.3GHz, the analyzer can monitor signals up to 12GHz, using switchable bandpass filters from 200Hz to 850kHz. It provides seamless coverage across the spectrum, displaying up to 450 points
Differences to the Former TinySa：Improvements include a default maximum frequency of 800MHz, an LNA for low-level signals, and an RBW frequency range from 200Hz to 850kHz that meets SSB two-tone test requirements

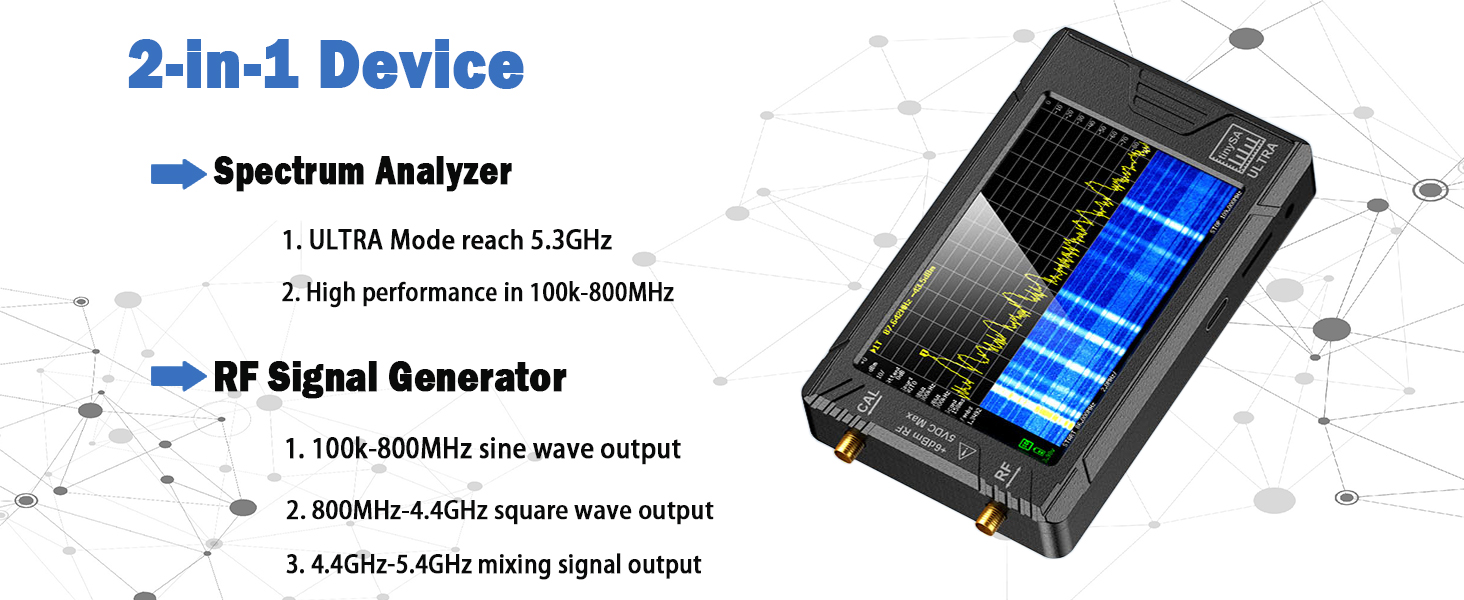

2 in 1 Device：When connected to a PC via USB, the device becomes a PC-controlled Spectrum Analyzer or Signal Generator, with output options from 100kHz to 5.4GHz. It includes a built-in calibration signal generator and all the components of a conventional heterodyne swept spectrum analyzer

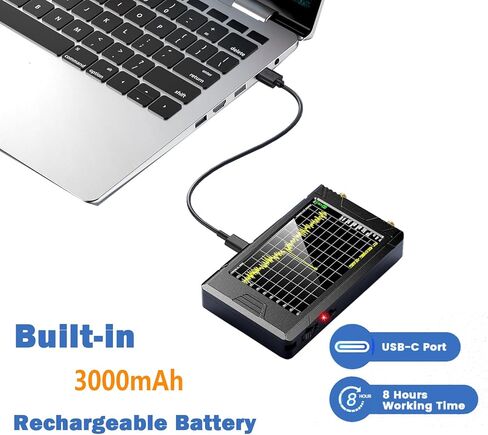

New Add-ons：Built-in SD card slot, a 32GB micro SD card, a 4-inch touchscreen display, an internal rechargeable battery (up to 8 hours), and an audio out port
PC Control：The device can be controlled by a PC, transmitting data and synchronizing the display. The USB interface implements the Serial over USB (CDC) protocol, with a set of commands for measurements and updates

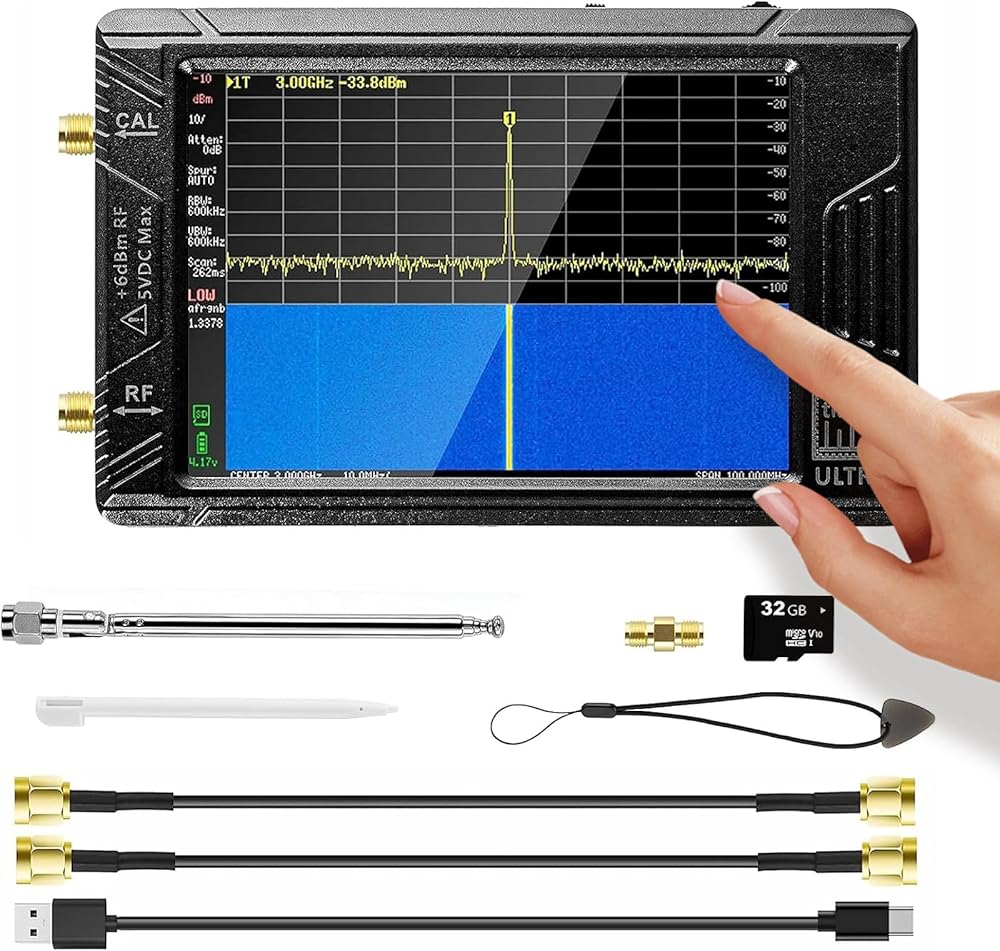

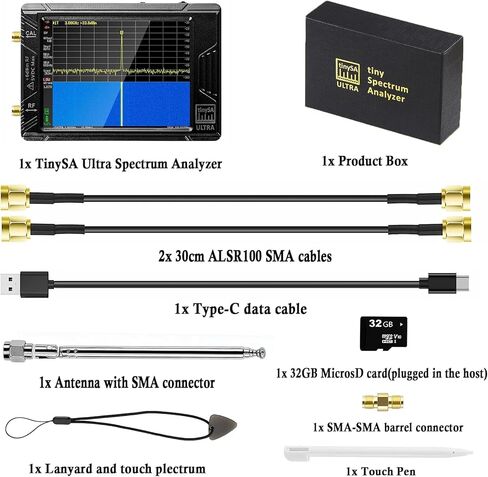

What You Get： 1x Tinysa ULTRA Spectrum Analyzer; 2x 30cm ALSR100 SMA cables; 1x SMA-SMA barrel connector; 1x TLanyard and touch plectrum; 1x Antenna with SMA connector; 1x 32GB MicroSD card(plugged in the host), 1 x USB Type-C data cable; 1x stylus pen
