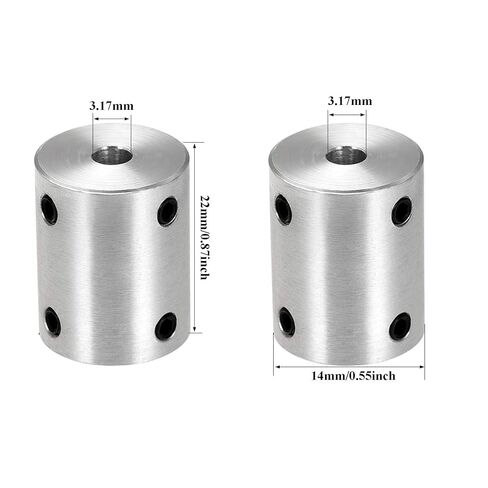

4Pcs 3.17mm to 3.17mm Rigid Motor Shaft Coupling Coupler Sleeve Coupling Adapter for 3D Printers RC Motor Accessories

KWD 4.500
Brand
daier
Weight
131 g
Size3.17mm to 3.17mm
– 1 +

Special Features

  • Connection Diameter: 12mm to 12mm, Total Length: 22mm /0.87 inch, Outside Diameter:20mm/ 0.79 inch.
  • The rigid coupling is 90 degree fixing design, and it is fixed by four machine screws.
  • Wide Application: Ideal for motor and gearbox assemblies, this coupler provides a sturdy and stable connection to hold various components tightly together.
  • NOTE: The rigid type basically does not allow eccentricity, and it must be fully adjusted during use.
  • Single piece set screw clamp design makes it easy to set up the items on the shaft and control the holding capacity of the coupling.

Description

Description:
Made from 45# Steel material to reduce inertia
Rigid coupling,high torque with rigidity,low inertia and excellent sensitivity
No rotation gap, elastic action can make up for symmetrical angular misalignment
Maintenance-free, oil proof and corrosion resistance
Suitable for model car, model boat, hardware, , mechanical drive situations etc

Feature:
4 pcs screws design
Thread Size: M5
Color: Silver Tone
Material: Steel
Total Length: 22mm /0.87 inch
Outside Diameter : 20mm/ 0.79 inch
Through Angle: 90 Degree

Package include:
4 Pcs x Rigid Shaft Coupler
16 Pcs x M5 Screws
1 Pcs x Allen Wrench
