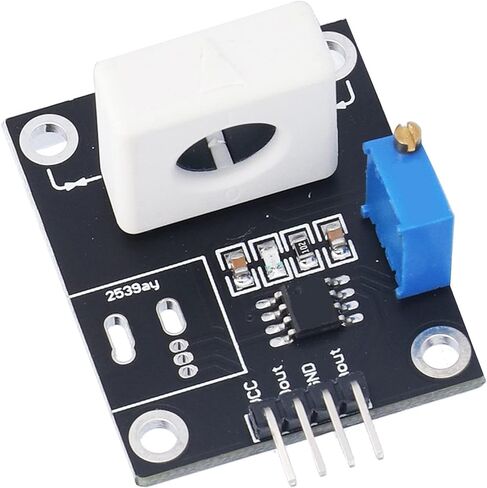

Current Sensor Module Sampling Current Conversion Analog Output with Overcurrent Detection Indicator

KWD 5.500
Brand
Walfront
Category
Sensors
Weight
12 g
– 1 +

Special Features

  • Detection Range--The detection range of WCS1600 current sensor module is DC±100A, and the current detection resolution is 22mV/A
  • Adjustable Critical Point--The critical point of over‑current setting is adjustable, and the setting resolution is 5A

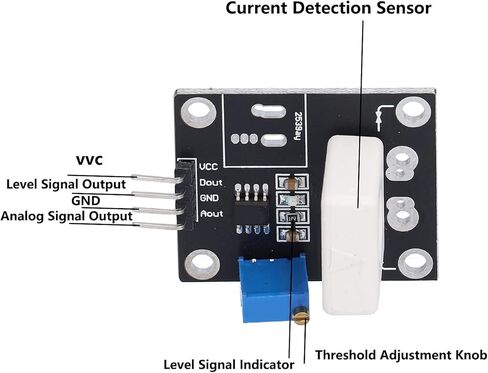

  • MCU IO Port Control--Sampling current conversion analog output, can be connected to ADC, TTL level output, MCU IO port control
  • Output Indicator--The output is analog and level , with output indicator, providing output over‑current indication
  • Mounting Holes--The current sensor module has mounting holes for easy firmware installation and removal

Description

Specification:
Item Type: Current Sensor Module

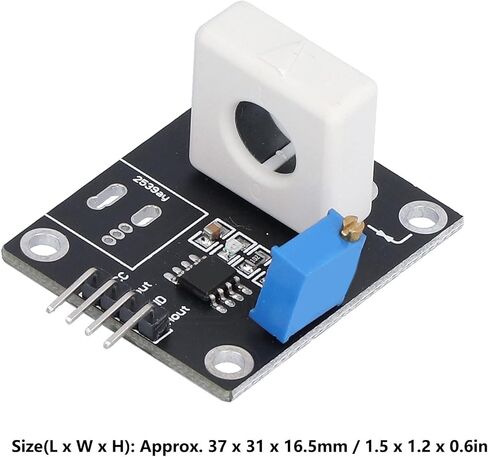

Size(L x W x H): Approx. 37 x 31 x 16.5mm / 1.5 x 1.2 x 0.6in
Main Chip: LM393 OP Amp, WCS1800
Working Voltage: DC 5V
Current Detection Range: DC±100A
Current Detection Resolution: 22mV/A
Output : Analog and level
Application: Intelligent car motor over-current detection, locked-rotor protection current detection, short-circuit protection detection, demonstration teaching experiment and other situations, convenient for secondary development

Package List:
1 x Current Sensor Module

Note:
Wide current detection range DC±100A.
