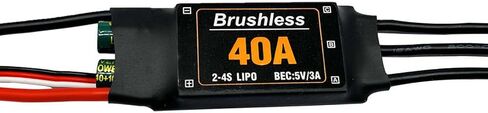

40A Brushless ESC 2-4S Speed Controller 5V 3A BEC with XT60 Plug for RC Drone Airplanes Multi-axis Aircraft Helicopter

KWD 5.500
– 1 +

Special Features

  • Output Capacity: Continuous Current 40A, Short-Time Current 55A
  • BEC Output: 5V@3A (Linear Regulator Mode - Linear Mode) ; Power Input: 2-4 Lithium Batteries(Not Included)
  • Maximum Speed: 210,000 RPM For 2-Pole Motor, 7000 RPM For 6-Pole Motor, 35,000 RPM For 12-Pole Motor
  • Timing Can Be Changed To Be Suitable For Different Brushless Motors ; Compatible with lithium batteries, and owning full protection, low pressure cut off protection/overheat protection/throttle signal loss protection.
  • Providing safety protection, no matter where the throttle is, the motor will not rotate when connected to the battery.

Description

Specification:
Item Type: Brushless ESC
Material: Electronic Components
Weight: Approx. 34g/1.2oz

Continuous Current: 40A
Maximum Current: 55A
Plug: XT60
BEC: Yes
BEC Output: 3A/5V
Applicable Battery: 2-4S
Maximum Speed: 210,000 rpm for 2-pole Motor, 7000 rpm for 6-pole Motor, and 35,000 rpm for 12-pole Motor
Application: RC Remote-controlled UAV, Helicopter, FPV, Etc

Package List:
1 x 40A ESC
