1. BNC Head probe is compatible with most the BNC oscilloscopes.
2. ground clip is very solid, it is not easy to disconnect.
3. Attenuation ratio of this oscilloscope probe is 1X/10X.
4. Easy to install and convenient to use.
5. Compensation capacitance can be adjusted.

Spec:
Description:

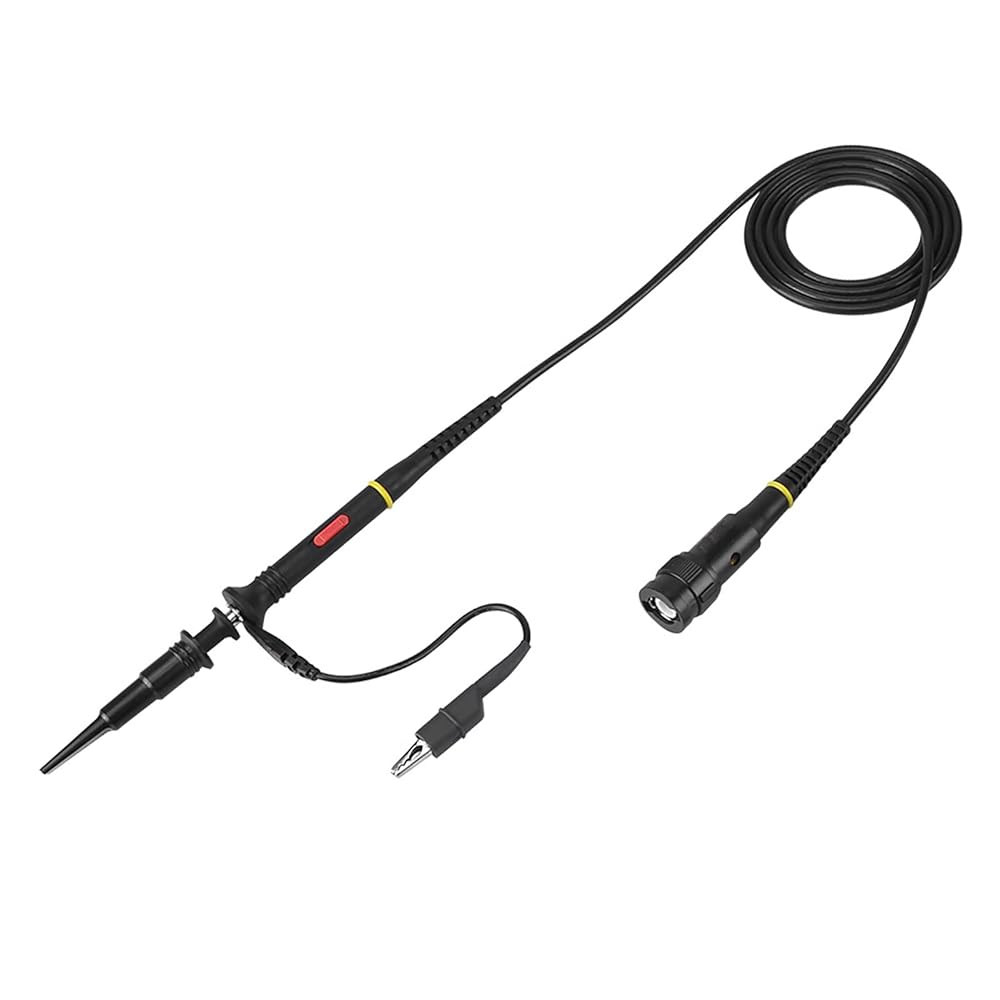

This oscilloscope probe has BNC Head, which can suitable for most BNC oscilloscopes. It is safe to install and convenient to use, no worry about the disconnection of the clip.
Feature:
BNC Head probe is compatible with most the BNC oscilloscopes.
ground clip is very solid, it is not easy to disconnect.
Attenuation ratio of this oscilloscope probe is 1X/10X.
Easy to install and convenient to use.
Compensation capacitance can be adjusted.
Specification:
Model P2200(European standard)

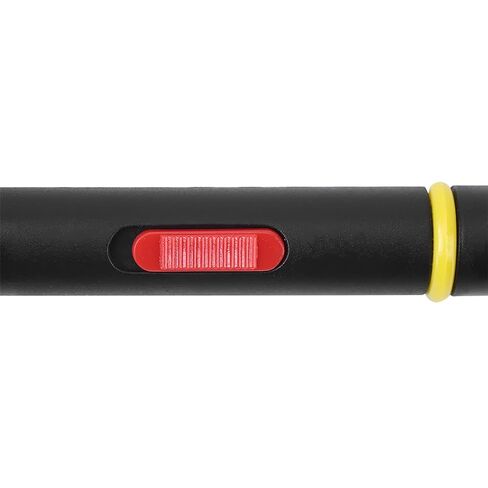

Attenuation ratio 1X/10X switching
Rising time ＜1.75ns
Input resistance 1MΩ/10MΩ
Input capacitance 1X:85pF-120pF
10X:18.5pF-22.5pF
Compensating range 10pF-35pF
System bandwidth 1X:DC-6MHz
10X: DC-200MHZ
Input voltage 1X:
