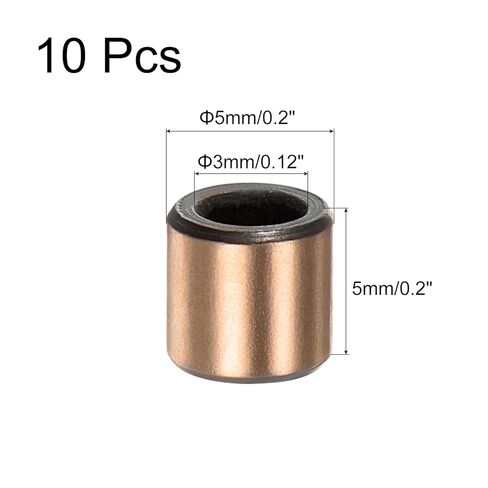

uxcell Sleeve Bearings 3mm Bore x 5mm OD x 5mm Length Plain Bearings Wrapped Oilless Bushings for Sliding Parts of Machinery, 10pcs

KWD 2.500
Brand
uxcell
Weight
10 g
Size3mm Bore x 5mm OD x 5mm Length
Number of Items10
– 1 +

Special Features

  • Size - Bore Diameter: 5mm, Outside Diameter: 7mm, Length: 8mm. Good dimensional stability.
  • Material - Carbon steel base with Bronze Sintered and composite coating. With high mechanical strength and good thermal conductivity, it is suitable for use in a wide range of low and high temperatures.
  • Feature - Oilless, maintenance-free, good frictional properties, stable low friction coefficient. Features good load capacity and wear resistance performance.
  • Function - The bushings can be used for different purposes, such as positioning, wear, and vibration reduction, isolate the shaft from special media to increase the life of the shaft.
  • Application - Wide range of uses across various industries, such as textile machines, printing machines, hydraulic loaders, fitness equipment, agricultural machinery, and other industrial equipment.

Description

Description:
Plain Bearings are constructed with carbon steel as the base, sintered porous bronze as its interlayer, rolled with PTFE and Lead compound as the inner surface, and copper-plated on the outer surface.
Wrapped Bushing is self-lubricating. It offers good frictional properties, wear resistance, and low noise.
Solid friction Oilless Bushing can operate during a wide temperature range. Suitable for applications with sliding movements.
Oilless Sleeve Bearings are most suitable for places where self-lubricating properties of the material are required.
Note: Split Line can not be used for bearing.

Specification:

Material: Carbon Steel Base with Porous Bronze Sintered
Finish: PTFE and Lead Rolling, Copper Plating
Friction Factor (Dry Friction): 0.04-0.2
Friction Factor (Oil Lubrication): 0.02-0.07
