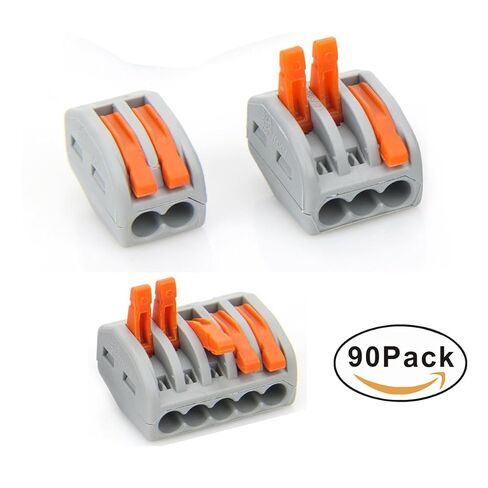

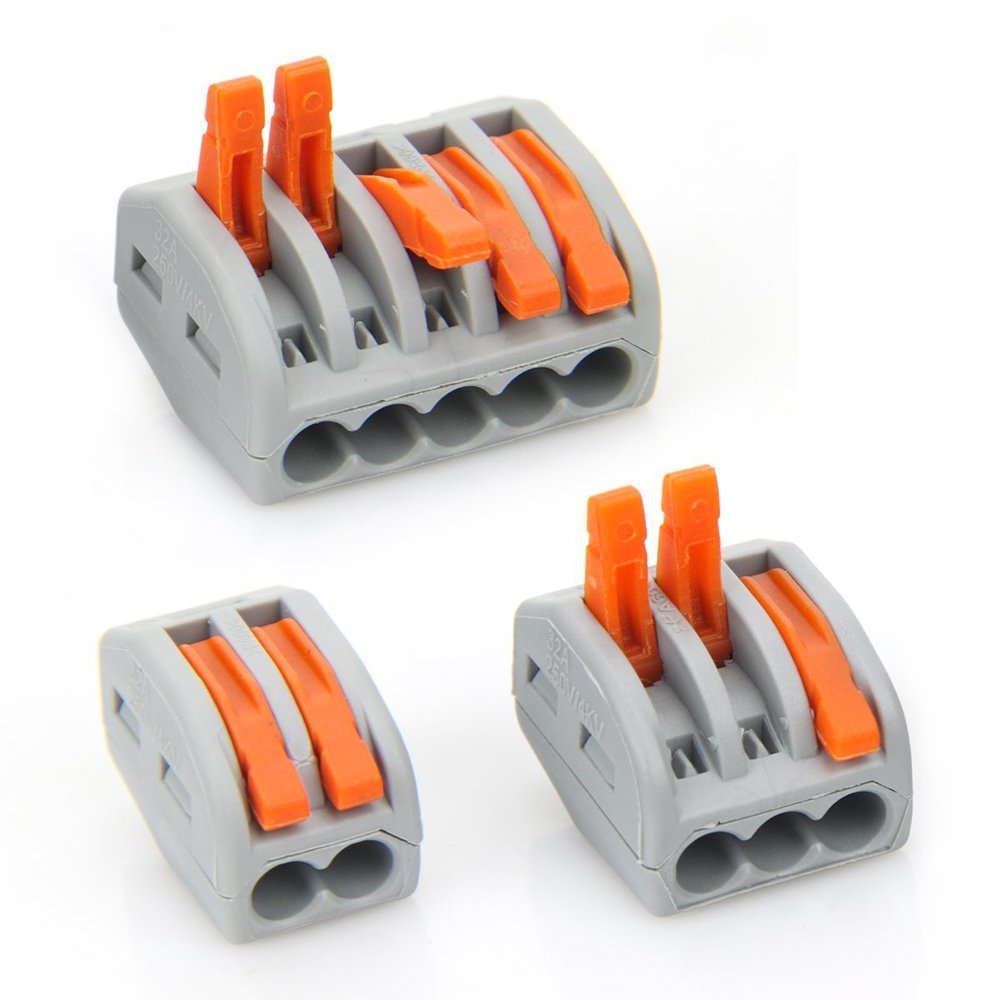

90 PCS Lever Wire Connectors Kit Compact Splicing Wire Connectors Fast Connection Terminal Electrical Connectors 2/3/5 Conductor Assortment Kit for Quick Connect 28-12 AWG

KWD 10.500
Brand
AHBLQD
Weight
223 g
Size2/3/5 Conductor(90 Pack)
– 1 +

Special Features

  • 【Safety Material】It is made of nylon PA66 modified with high quality flame retardant insulation material, guide strip is electrolytic copper (surface tin plating); Which has the advantages of long life, corrosion resistance, aging resistance, high pressure resistance , insulation and flame retardant; The lever wire connectors can be used up to an ambient temperatures of 105°C, better conductive properties.
  • 【Universal compatibility】Are widely applied to connect any combination of solid, stranded, and flexible copper wires, ideal for compact and complex applications. Suitable for single strand hard wire 0.08~4mm²/28-12AWG, and the multiple strand flexible copper wire 0.08~2.5mm²/28-14AWG. They work with most every gauge of normal household wiring: sockets, switches, cars, loudspeakers, lamps, electrical boxes, chandeliers, fan controls, and much more.
  • 【Reliable & Reusable】Lever wire connectors inline splices can be managed separately for different wires to avoid short circuit and fires caused by aging of the staggered band of the wires. It can be recycled several times and can be removed when not in use.

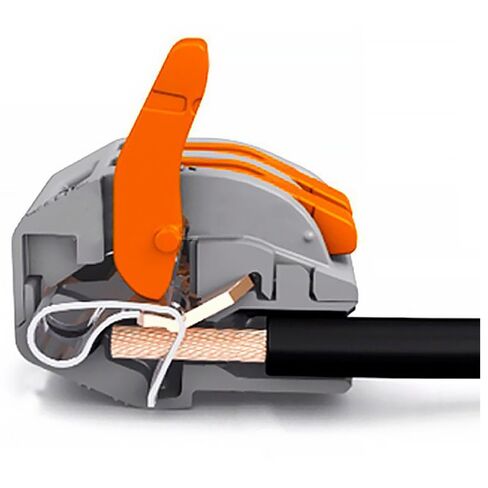

  • 【Easy to operate】Strip wire lead to 9-10mm, open clamping unit and insert your wire lead, lower lever to close the clamp. Instead of traditional electrical tape and intertwined butt connectors, technological innovation reduce wiring time by 80%.

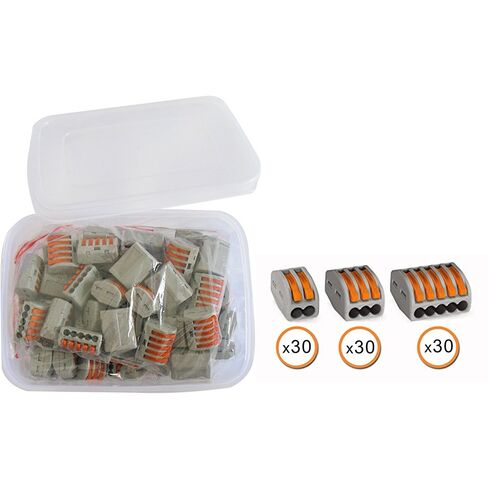

  • 【Package include】PCT-212 (60 Pack), transparent tool box packaging.

Description

Wire Cross section: 0.08~4.0mm²/28-12AWG(solid), 0.08~4mm²/28-14AWG(stranded)
Shell Material: Modified nylon(PA66)
Guide Strip: Electrolytic copper (Surface tin plating)
Spring: Nickel chromium alloy steel
Product Size(3 Conductor): 17.5(L)*21.3(W)*14.5(H)mm
Maximum Operating Temperature: 105℃
Rated Voltage: 250V/4KV
Rated Current: 32A
Package include: PCT-212 (60 Pack)

HOW TO USE

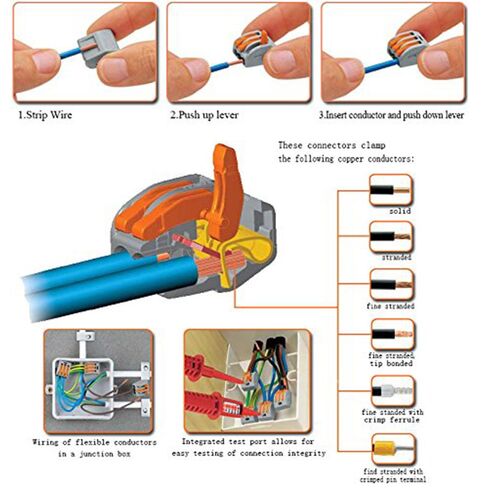

Strip wire lead to 9-10mm, open clamping unit and insert your wire lead, lower lever to close the clamp.

It is made of nylon PA66 modified with high quality flame retardant insulation material, which has the advantages of long life, corrosion resistance, aging resistance, high pressure resistance, insulation and flame retardant.

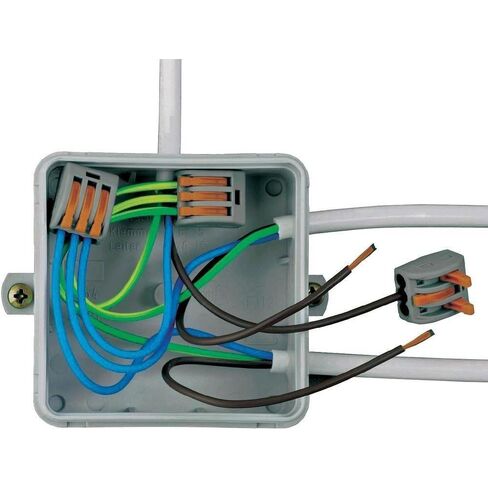

It is widely used in building wiring, household appliances, lighting, machinery and other wire connecting parts, where space is very valuable for all required connections.
