Cutting size: 45.5mm x 26.5mm
Dimensions: 48mm x 29mm x 21mm
Measuring range: DC 0-99.9A
Measurement Accuracy: +/-(1% +2 digits) (Measure 75mV)
Supply voltage: DC 4-30V

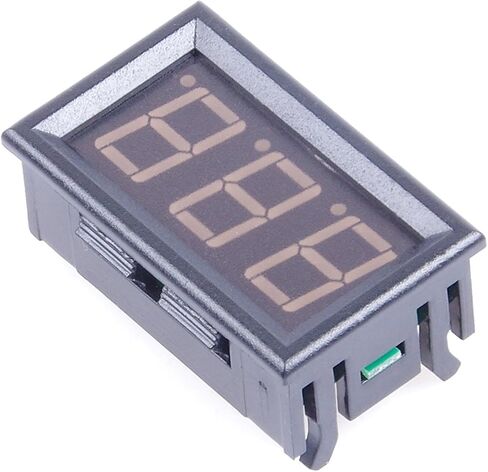

Display: Three 0.56" LED digital tube
Display color:Green
Refresh rate: about 500ms/time
Operation temperature: -10 to 65 Celsius

Note:
1.Please note that this ammeter doesn't include currenr shunt but it must be used together with shunt
2.Please follow wiring instruction carefully, or the ammeter will burn out
3.Please note that the power supply terminal shares same ground wire with the tested terminal.Therefore,
the tested terminal of ammeter must be connected between the negative pole of tested device and the negative pole of power supply for tested device
4.We suggest you to adopt isolated power supply for ammeter
5.Please connect the shunt before you connect the ammeter into circuit so as to prevent over-voltage from damaging the ammeter
6.Please note that this ammeter requires a 100A 75mv shunt

Package includes:
1x Digital Ammeter(without current shunt)
