5Pcs 19mm Momentary Push Button Switch Waterproof IP68 5Amp Stainless Steel High Top 12V 24/36/48v DC 120V 250VAC 1NO SPST for Car, Ships or Sea

KWD 18.500

Brand
ZJWZJH
ColorBlack
Size5Pcs IP68 Waterproof High
1 +

Special Features

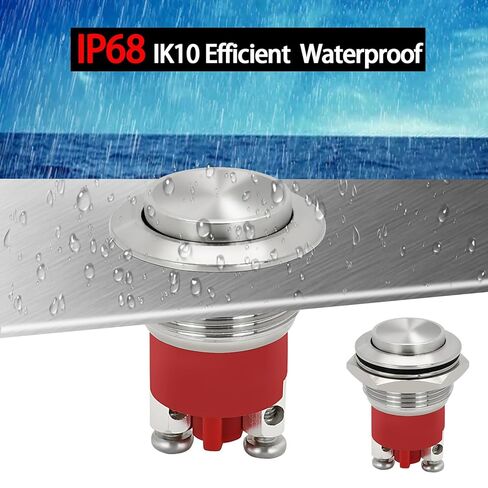

  • IP68 waterproof protection can be used in wet or dusty enviroment.Our Push Button Switch through and CE certification.
  • Mounting Hole Size: 19MM (0.75“) hole, Swith Rating: 5A (120V/ 250V AC ),3A (5V,6V,12V,24V,36V,48V DC) . Switch Combination:1NO SPST, Ambient Temperature:-25℃ TO +65℃

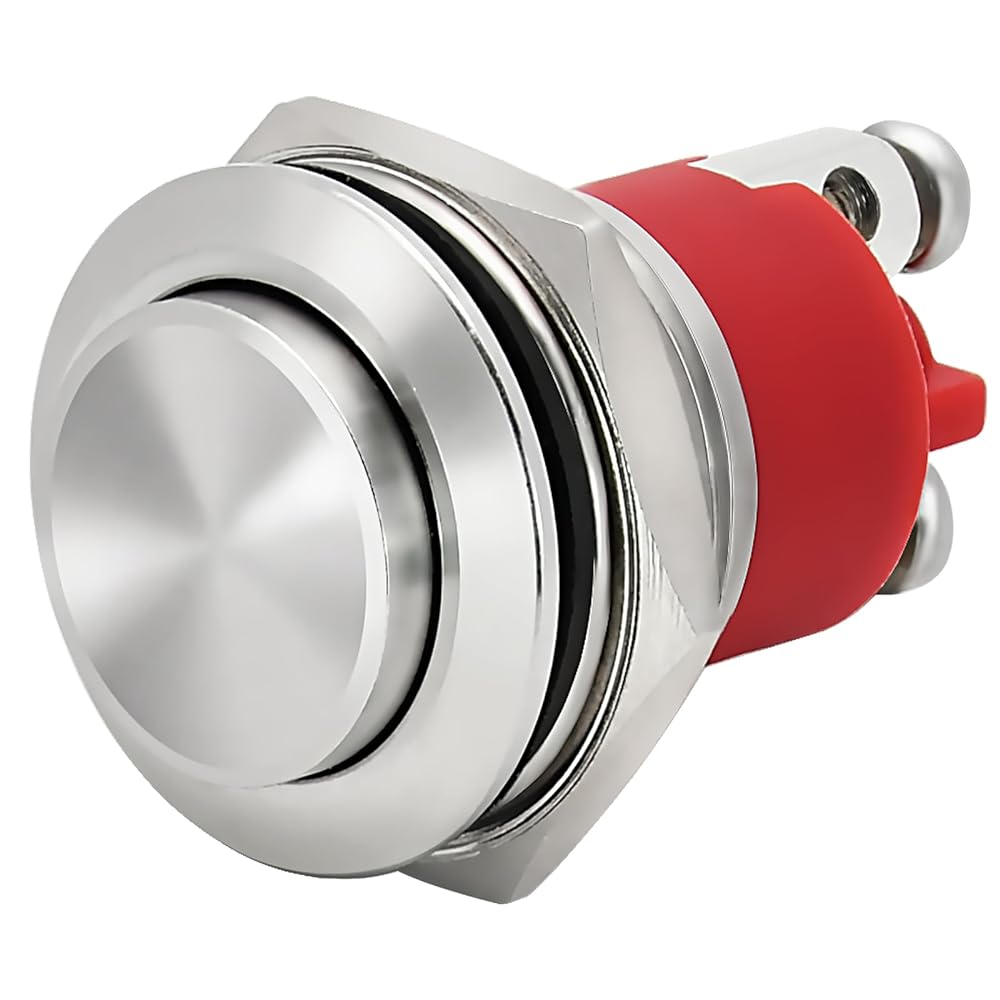

  • Head Shape: High Round, Shell color:Silver,Shell material:Stainless Steel.Total length: 27 mm (1.06'')
  • 19mm Momentary Push Button Switch: Push & Hold, ON; Release, OFF, Contact Configuration: 1NO. The powerful waterproof function of the button head IP68/IK10 can be applied to any outdoor environment, ships, and offshore equipment.
  • Package Content Include: 1 PCS * Push Button Switch .If you have any question, please be free to contact us. We offer free replacement or full refund.

Description

Package include :
1* Metal Push Button Switch

What's Momentary Switch:
Push and Hold-ON, Release-OFF

What's the Screw Terminal:
Easy to install,it has non-solder connections screw-type terminal to make fitting very easy.

Purpose: universal fit all 12v Car SUV Truck Conversion Van RV Boat Yatch Great for Electroma Starter Relay Horn Button Switch PC Power Switch or Any Circult Controls.

What's Note:
-The project you are going to be used for, don't let current go above 3 Amps. Or the switch will get warm and to be burned out

What's Customer Support:
If you have any questions, feel free to contact us by E-mail any time. We get professional customer service staff and technician to help you.
This product has Three kinds of heads: flat round, high round and Domed round, and two colors: silver and gold.

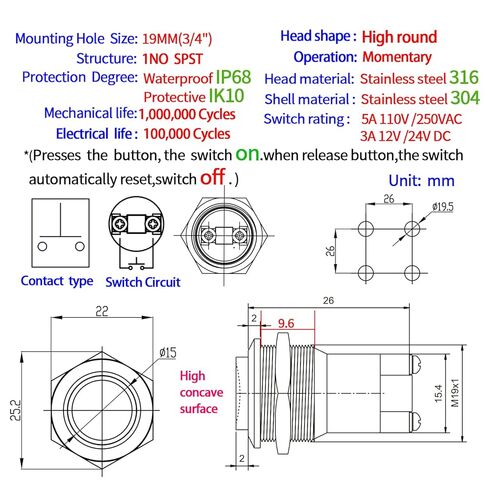

Specifications:
-Head diameter: 0.87" (22mm).
-Mountinghole size: 0.75" (19mm)
Thread Depth: 0.51"( 13mm)
-Switch combination:1No SPST.
-Operation types: Momentary
-Swritch rating:3A/250VAC
-Shell material:Stainless Steel and Aluminium alloy.
-Operation pressure: about 4N
-Protection level: IP68,IK08
Maximum Voltage: 250V AC/DC
Minimum Applicable Load: 5V AC/DC,1mA
Contact material:Silver plated
Operating Humidity:45 to 85% RH
Soldering Temperature: 20W/ 5 seconds or 260℃/ 3 seconds
