3 in 1 Smart Oscilloscope Graph Multimeter Pocket Sized Electric Pen Handheld Digital Scope Meter for Automotive,Diode Resistance Capacitance,Amp Ohm Volt Tester,Voltage/Current Test(Green)

KWD 15
Brand
WEELIAO
Weight
0.6 kg
ColorGreen
– 1 +

Special Features

  • 【3-in-1 DUAL MODE】This 3 in 1 oscilloscope multimeter can be used as a 10MHz bandwith, 48MSa/s real-time sampling rate oscilloscope; A multimeter which can measures ac and dc current, ac and dc voltage,resistance, capacitance, diode, continuity, and v-alert ; A electric pen which can Non-Contact test AC Voltage .

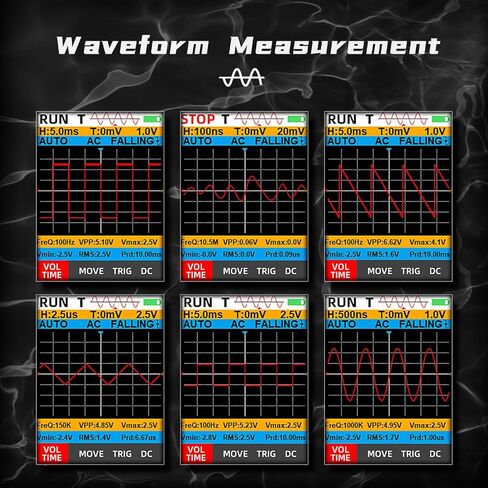

  • 【Oscilloscope Mode】Handheld oscilloscope, 10MHz bandwidth, real-time sampling rate 48MSa/s, record depth 64kb, maximum measurement voltage ±300V, automatic measurement function, trigger function auto/normal, 200mv/div-100v/div vertical sensitivity, support waveform image storage and export.
  • 【Multimeter Mode】4-digit 6000 Counts. AC Voltage: 0.1mV-600V, DC Voltage: 0.1mV-600V, DC/AC Current: 0.001A-10A, Resistance: 0.1Ω-60MΩ, Capacitance: 0.01nF-99.99mF, Diode 0V-3V, Continuity Measurement. A multi-function meter for professionals, factories, schools, hobbyists or home use.
  • 【NCV Function】Equipped with an NCV inductive probe, fully safe non-contact voltage testing with sound and light alarms. You can detect AC voltage without the use of test leads . This tool is essential for detecting electric fields in various settings.

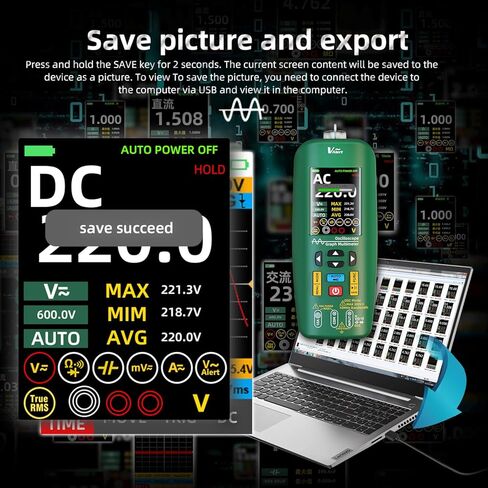

  • 【Saving images and Exporting】Long press the SAVE key for 2 seconds, and the current screendisplay will be saved as an image in the device. To view saved images,you need to connect the device to the computer via USB and view it on the computer.You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen.
