Maximum detection distance
F15: 1. 5mm±10%
F3: 3mm±10%
F5: 5mm±10%

Stable detection distance
F15: 0~ 1.2mm
F3: 0~2.4mm
F5: 0~ 4mm

Standard detection object
Iron plate 8x8x1mm
Iron plate 12x12x1mm
Iron plate 25x25x1mm

Detectable objects: magnetic metals [iron, iron alloys, nickel, etc.] (non-magnetic metals have a short detection distance)
Hysteresis: Less than 10% of working distance
Power supply voltage: 12~24V DC±10%
Current consumption: 15mA or less
Control output: load power supply voltage below DC26.4V, load current below 100mA
Open collector output (NPN/PNP output varies according to the model)
Maximum response frequency:
F15: 1kHz
F3: 600Hz
F5: 500Hz
Protection structure: IP68
Ambient temperature: -25~ + 70°C
Ambient humidity: 35~ 85%RH

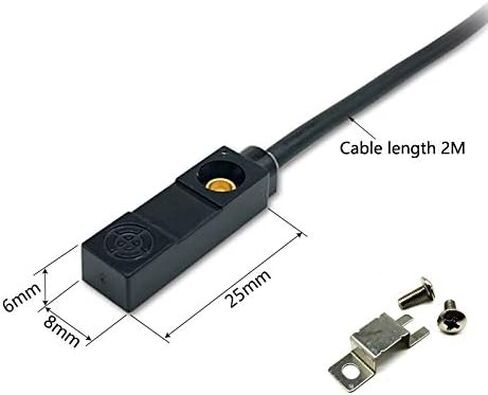

Connection method: lead-out type (standard wire length 2m)
Weight
F15: about 35g
F3: about 37g
F5: about 58g
