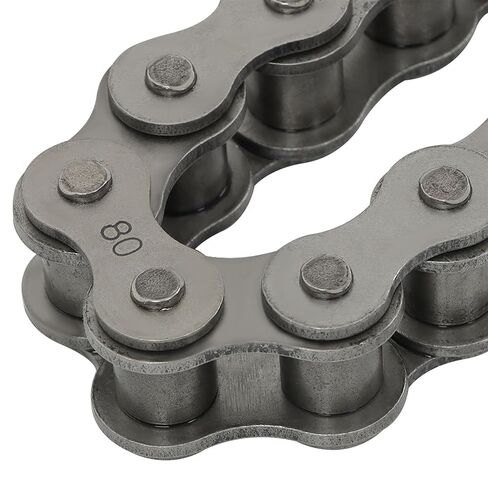

80 Roller Chain 10 Feet with 1 Connecting Links

Material: Carbon Steel
ANSI Chain No.: 80
Chain Length: 10 Feet
Pitch (P): 1.0 inch (25.400 mm)
Weight (q): 1.747 lb/ft (2.6 kg/m)
Average Tensile Strenght (Qo): 69.4 kN
Pin Lenght (L max): 1.287 inch (32.70 mm)
Pin Lenght (Lc max): 1.377 inch (35.00 mm)
Pin Diameter (d2 max): 0.311 inch (7.92 mm)
Plate Thickness (T max): 0.128 inch (3.25 mm)
Roller Diameter (d1 max): 0.625 inch (15.88 mm)
Inner Plate Depth (h2 max): 0.944 inch (24.00 mm)
Ultimate Tensile Strenght (Q min): 56.70/12886 kN/LB
Width Between Inner Plates (b1 min): 0.620 inch (15.75 mm)

Package Includes:
1 x 80 Roller Chain
1 x Connecting Links
