Ref OEM NO: 1500-2047,1502-12C6U1B2S1
Voltage: 12V

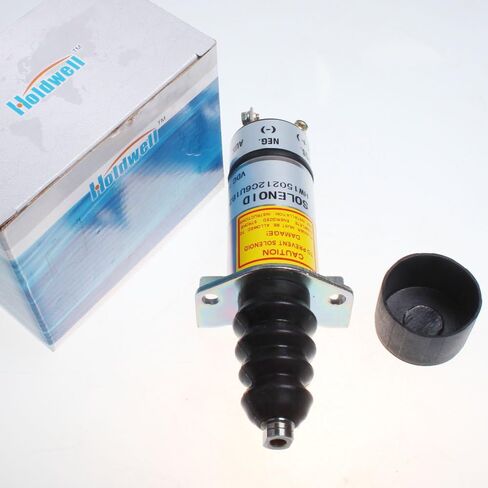

1500 Series Solenoied
Pull Force: 44 - 53 N
Hold Force: 85 - 125 N
Warning:
Firstly, rotate starting switch from "ON" (running / open) to “START”.
Don't exceed 5 seconds when rotating, or else, the solenoid may burn.
Continuous starting time must not exceed 15 seconds. If starting fails, wait for 60 seconds then try again, otherwise the product can be damaged.
Secondly, the correct connection of wires:
1) Red wire connect to “ON” (running / open)
2) White wire connect to “START”
3) Black wire connect to ground.
