Description:
Direct connection you can process data that initially requires a standard logic buffer for processing
The ULN2003 has a high operating voltage and high operating current. It can absorb currents up to 500mA and withstand 50V at shutdown. The outputs can also be operated in parallel at high load currents

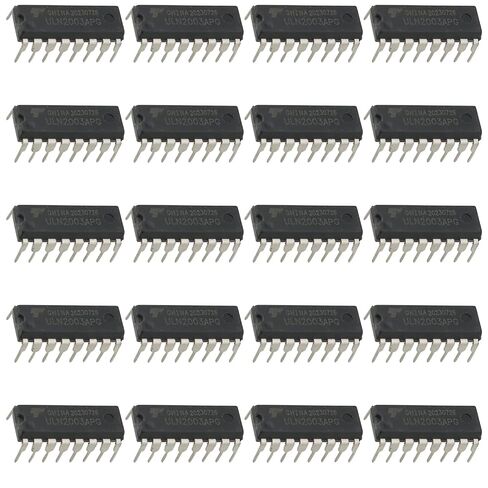

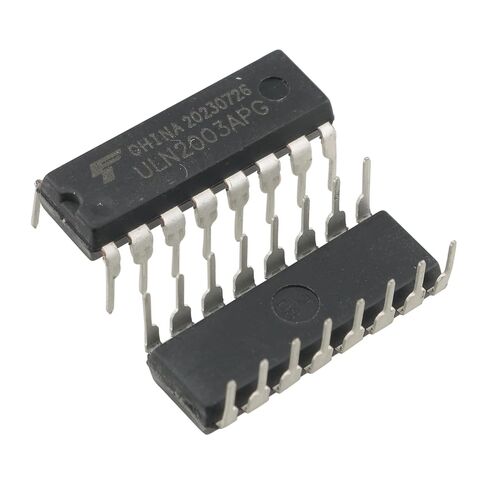

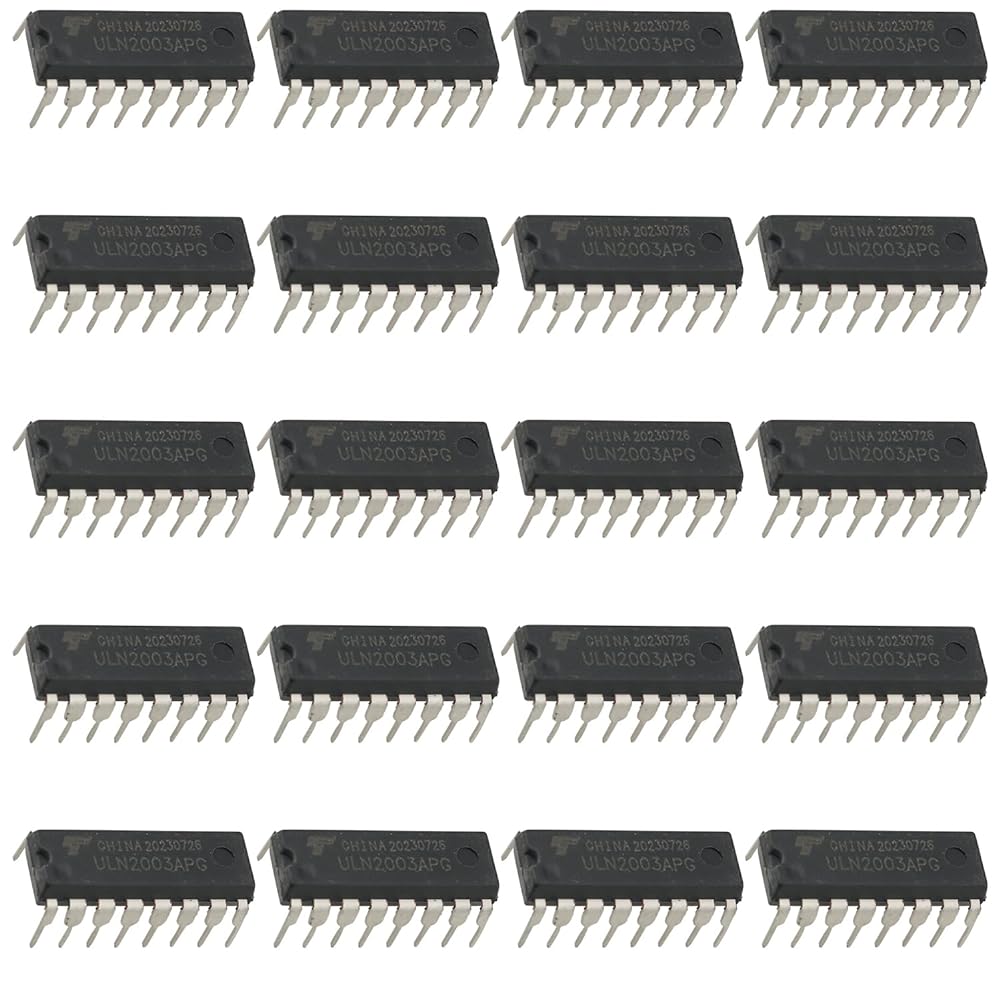

ULN2003 is available in DIP-16 or SOP-16 plastic package
Parameters:
ULN2003 is a Darlington high voltage high current series
Consisting of seven silicon NPN Darlington tubes
Output current (max): 500 mA
Operating temperature: -20 degrees Celsius to 85 degrees Celsius
Storage temperature (maximum): 150 degrees Celsius
Storage temperature (minimum): -55 degrees Celsius
Output breakdown voltage: 50 V
DC current gain (min): 1000
V IN (ON) (max): 24V
V IN (ON) (min): 2.8V
Recommended system supply voltage (max.): 24V
Recommended system power supply voltage (minimum): 0V
It is characterized by large current gain, high operating voltage, wide temperature range, and high load capacity
Suitable for a variety of systems that require high-speed high-power drive
