XZT 230PSI-NPT Digital Pressure Switch Controller,Pressure Gauge,Pressure Sensor for Water Pump Air Compressor 110VAC

KWD 31.500
Brand
XZT
Weight
409 g
– 1 +

Special Features

  • 1:Change Units- PSI, BAR , MPa ； 1/4" NPT thread bottom entry
  • 2:Delay control, reverse control, pressure leakage protection, passwords protection
  • 3:Relay signal output, upper and lower limit adjustable
  • 4: High Accuracy Sensor : 0.5%FS
  • 5:4 digit LED to show pressure in real time

Description

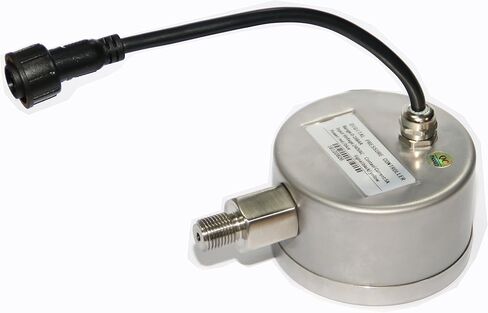

3.2"-NPT Connector Digital Pressure Switch controller Specification:
Pressure Range： 0 ~230PSI
Over Pressure： 150%
Accuracy： . ±0.5%FS
Alarm Point： Alarm point be set discretionarily within the range.
Alarm Type：Relay signal
Long-term Stability： Typical: ±0.5%FS/year
Operating Temperature ：-20~ 80℃
Compensation Temperature ：-10 ~60 ℃
Electric Protection：Short-circuit protection, reverse protection, anti-electromagnetic interference
Sampling Frequency：5 times/sec
Measurement Medium： Gas, water, oil
Pressure Connection：NPT1/4
Connector Material：304SS
Shell：304SS
Supply：110VAC
Weight：0.3Kg
Dimension： Ø3.2”/Ø80mm

APPLICATION:
1: Pump Control
2: Air Compressor
3: Automatic Machinery
