Description:
* The NTC thermistors are reliable and stable, with wide range of over-current control.
* With small size and large power, they have strong capacity to inhibit surge current.
* Large material constant (B value), with small residual resistance.
* Thermal shock resistance, with wide range of operating temperature.
* Used for controlling the current of motor, heaters, bulb voltage stabilizer, electronic energy-saving lamp, electronic rectifier and other electronic installations.

Note: The thermistor cannot be used in parallel in the circuit.

Specification:

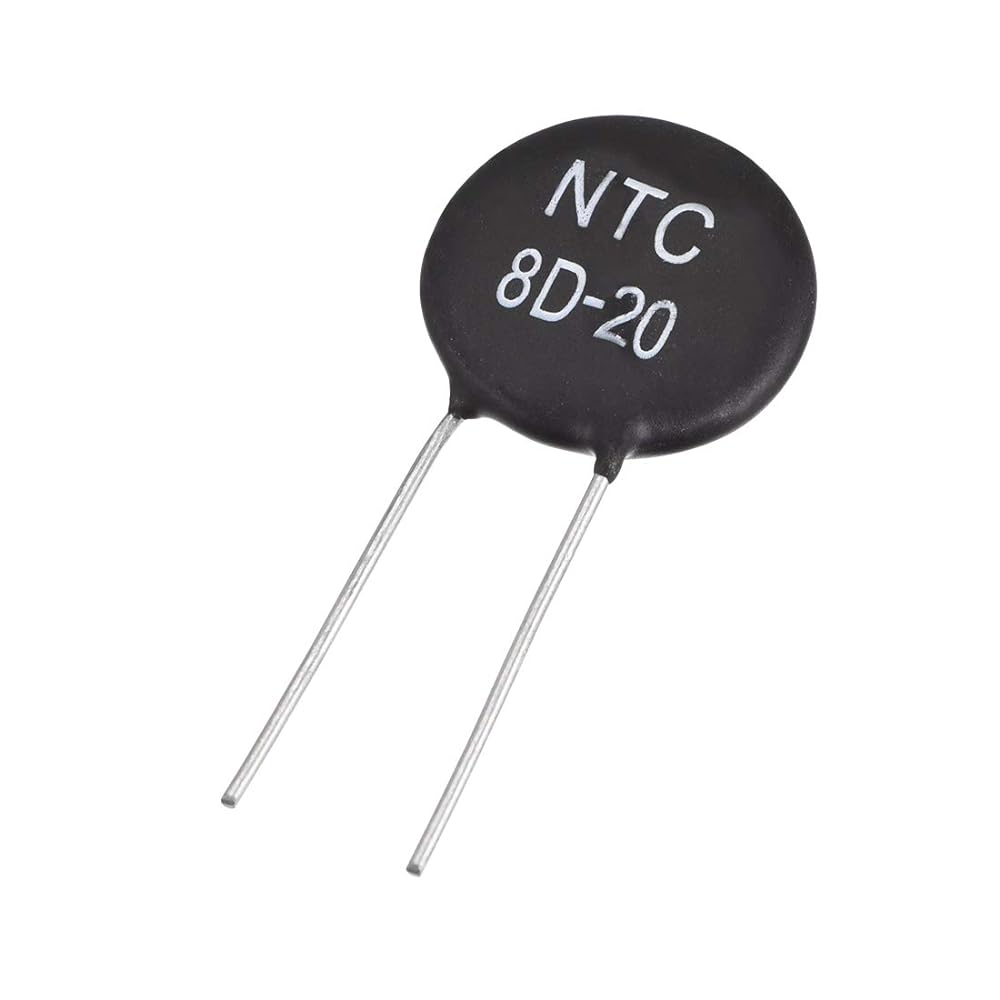

* Product Name: NTC Thermistor
* Color: Black, Silver Tone
* Material: Ceramic, Metal
* Zero Power Resistance at25C: 8 Ohm(+/-20%)
* B Value: >/=2900
* Thermal Recovery Time Coefficient: 105s
* Thermal Dissipation Constant: 25mw/C
*Operating Temperature: -40-200C
* Max Steady State Current: 6A
* 25C Insulation Max Resistance: 0.142 Ohm
* Lead Type: Radial Direction
* Lead Shape: S
* Pin Pitch: 9.5mm / 0.38inch
* Lead Size(Approx.): 1 x 24mm / 0.04 x 0.94inch (D*L)
* Body Size(Approx.): 21 x 4.5mm (D*T)

Package Content:
* 5 x NTC Thermistors
