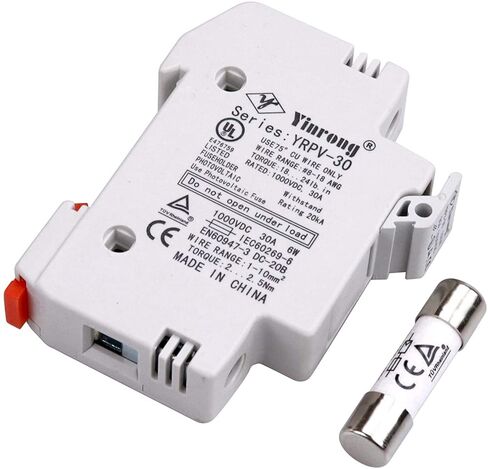

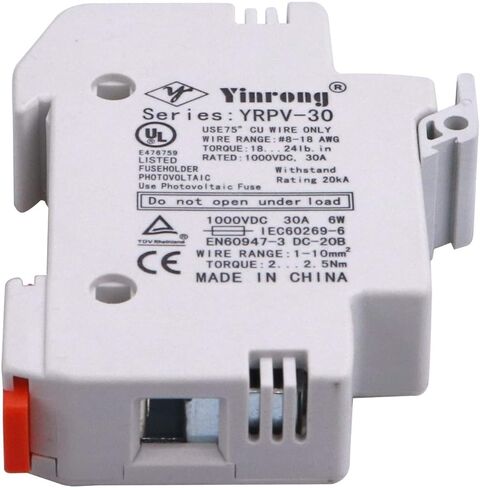

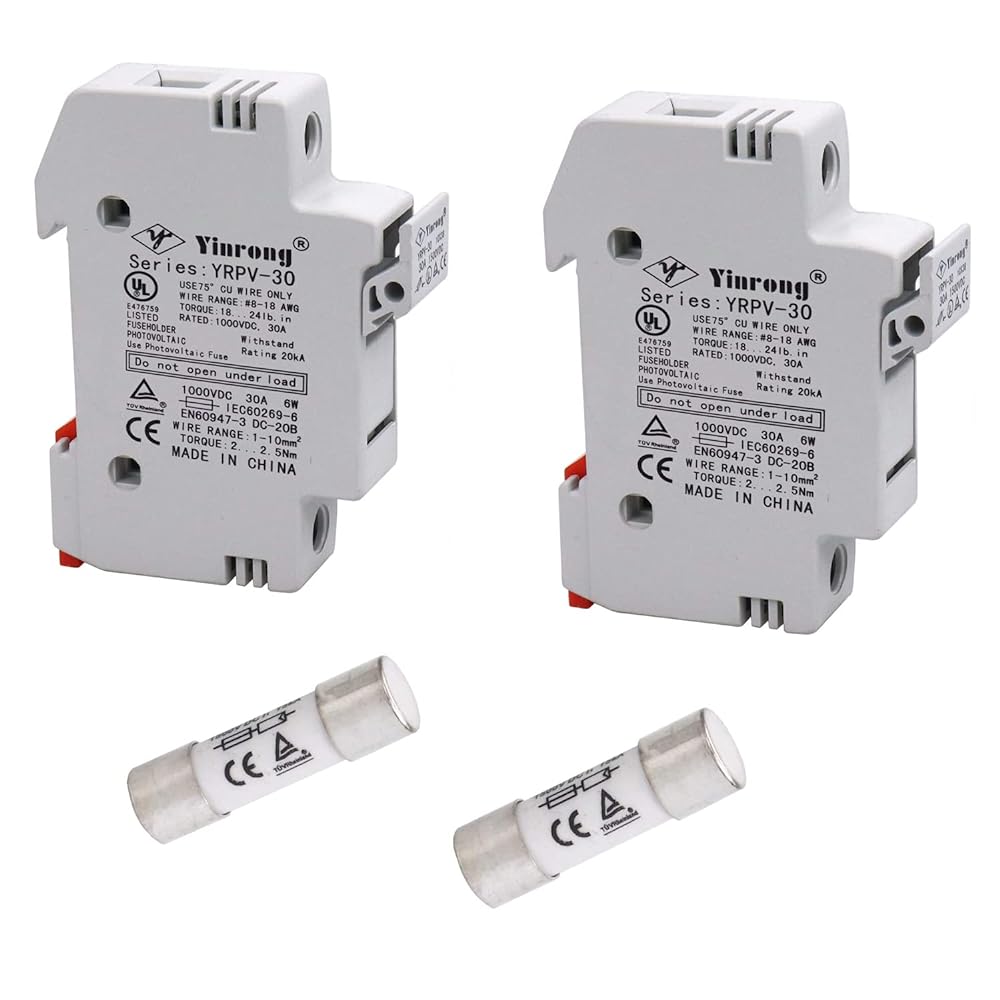

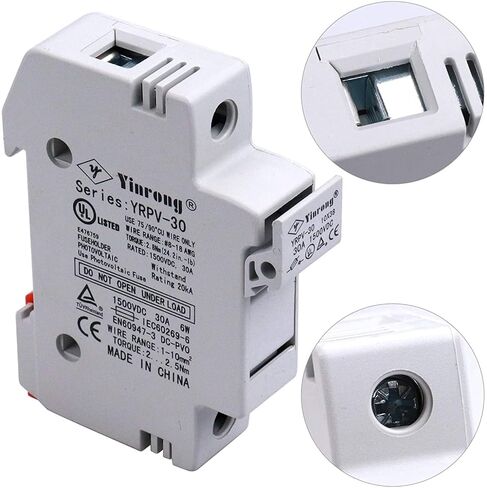

ZOOKOTO Solar Fuse Holder 10A 1000V DIN Rail Mount Fuse Holder 1 Pole White Plastic Housing with 10x38mm 1 Fuse 10A

KWD 4.500
Brand
ZOOKOTO
Weight
54 g
Size1pack
Style10A
– 1 +

Special Features

  • Photovoltaic Fuse holder 10A, Standard: IEC60269-6, EN60947-3, DC-PV0, E476759
  • Universal casing fits to 10*38mm fuse (2A TO 30A)

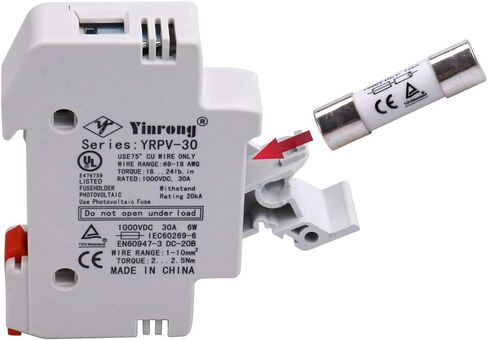

  • Easy fuse access, installation and removal and easy to connect wire in screw clamp
  • Ideally for protecting the electrical circuit from overload and short-circuits for industrial equipment's or household appliances with indicated light
  • Be used for distribution and protection the facilities from damages caused by overload and short-circuit. If you have any question, please feel free to contact us

Description

Specifications:
Shell Material: Nylon, resistant to high temperature
Rated Current: 10AMP (depends on the fuse)
Rated Voltage: 1000V
Use 75-90°CU wire only
Wire Range: #8-18AWG (1-10mm2)
Torque: 2.8Nm (24.2in.-lb)
Withstand Rating: 20KA
Number of Pole: 1P
Switch Type: ON+OFF, Latching
Mechanical Life: 20,000 Times
Electrical Life: 6,000 Times
Rail Mounting: DIN Rail
TUV, UL, CE and ISO certificates approve a 2 years warranty period and a 25 years working time

Package list:
1xFuse Holder
1x10A Fuse
