uxcell® CF4 Cam Fllower Bearing 12mm Diameter Stud Type Track Needle Roller Bearings KR12 M4x0.7mm Thread

KWD 4
Brand
uxcell
Weight
10 g
– 1 +

Special Features

  • CF4(KR12). 12mm diameter and 20.5mm in length, the thread size is M4x0.7mm. Standard shape and size make the installation easier.
  • The bearing made of GCr15 steel, and the cage part is mild steel. Premium materials enhanced the performance of corrosion resistance and stability.
  • High load capacity. 260kgf on Dynamic Load Rating (Cr), 160kgf Static Load Rating (Cor). The limited speed goes to 28000 rpm.
  • Solid sealed. Preventing the entry of foreign matters like dust, this would extend the life of needle roller bearing.
  • Application. Cam Followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.

Description

CF4 Cam Fllower Needle Roller Bearing.
Cam Followers Bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.

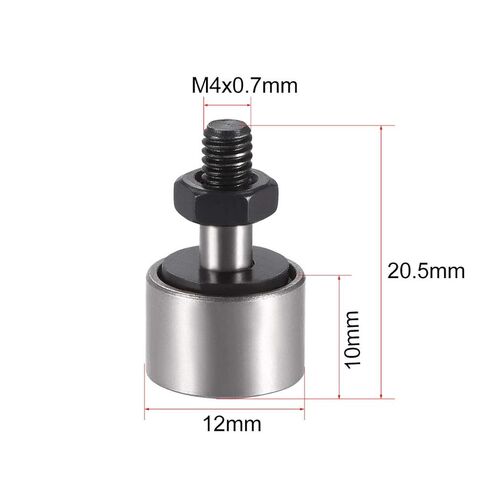

Model: CF4 or KR12
Outside Diameter: 12mm
Screw Thread Size: M4x0.7mm
Overall Length: 20.5mm
Bearing Thickgfess: 10mm
Dynamic Load Rating (Cr): 260kgf
Static Load Rating (Cor): 160kgf
Limited Speed: 28000 rpm
Bearing Material: GCr15 Steel
Cage Material: Mild Steel
Weight: 9g
Package Content: 1 pcs CF4 Cam Fllower Needle Roller Bearing
