2 Joysticks Hydraulic Backhoe Directional Control Valve, 6 Spool, 11 GPM

KWD 46
Brand
TINVHY
Category
Fittings
Weight
10.8 kg
– 1 +

Special Features

  • Come with 6 spools and 10 SAE O-ring in/out ports, with cast iron construction for long-time use.
  • This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.
  • Precision ground and hard chrome-plated spools assure a long life. High-tensile strength cast iron monoblock construction.
  • The compact design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.
  • All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders.

Description

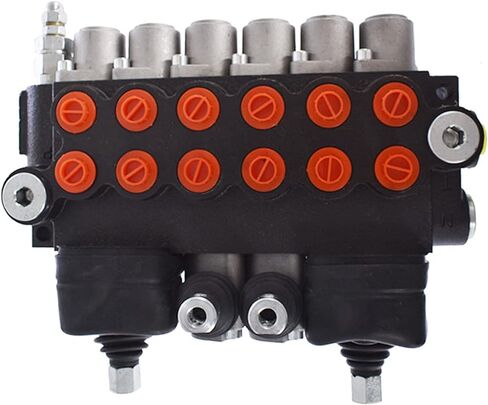

Hydraulic Backhoe Directional Control Valve

Specification:

Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Preset Pressure Relief: 2610 PSI
Flow Rating: 11 GPM (40 l/min)
A & B Work Ports: 8 SAE O-Ring (3/4"-16) Thread
Inlet Port: 10 SAE O-Ring (7/8"-14) Thread
Outlet Port: 10 SAE O-Ring (7/8"-14) Thread
N Port: 8 (1/2 - 14) G Thread (British Pipe Thread Parallel)
2 - 5/16" Mounting Holes

Features:

Spring center to neutral all spools
Durable cast iron construction provides long-term usage
Compact design use in small tractors, tractors loaders, log splitters, etc
This hydraulic directional control valve is designed to manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc
Its' compact design allows to use the control valve in small tractors, tractors loaders, log splitters & other mobile applications

Package Includes:

1 x 6 spool hydraulic backhoe directional control valve
