2PCS 0.96 inch I2C OLED Screen Display Board Module Self-Luminous 4 Pin 12864 128x64 Pixel SSD1306 Compatible with Arduino/Raspberry Pi (Blue+Yellow Blue)

KWD 4.500
Brand
Wishiot
Weight
12 g
ColorBlue+yellow Blue
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

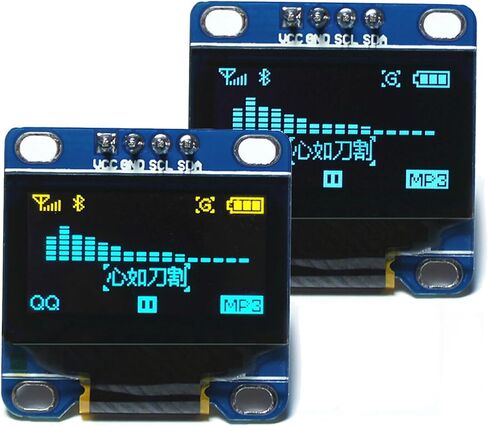

  • 0.96 inch OLED screen: resolution 128 x 64 lamp beads, display viewing angle greater than 160 degrees
  • Low power consumption/self-illumination: Normal operating power consumption of 0.04W, the full screen light operating power consumption of 0.08W, the display can be self-illuminated without backlighting, clear imaging
  • Easy to use: 0.96-inch OLED screen supports users to create fonts through the font generation software, can also be used with micro-controller to directly display graphics and text
  • Strong compatibility: with I2C/IIC interface, only 2 I/O ports, IIC address can be changed, Compatible with MMDVM, Pi-Star, and it works with raspberry pi

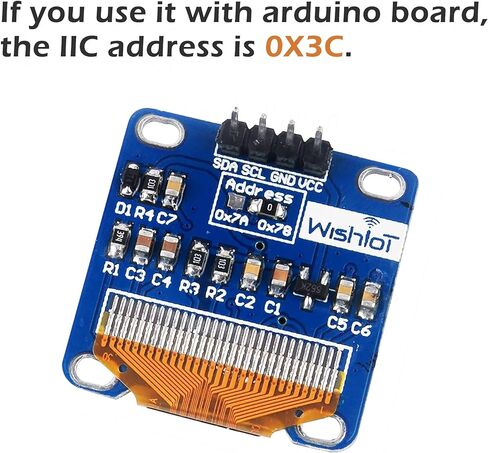

  • If you use the 0.96" OLED Screen with arduino board, the IIC address is 0X3C.

Description

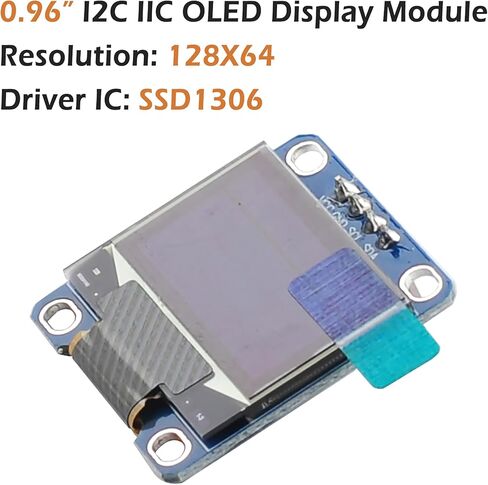

0.96 Inch I2C IIC OLED Display Module 128X64 SSD1306 for Arduino Raspberry Pi ESP32

Description
Size 0.96
Resolution 128X64
Color: White / Blue / Blue and Yellow
Viewing angle greater than 160 degrees

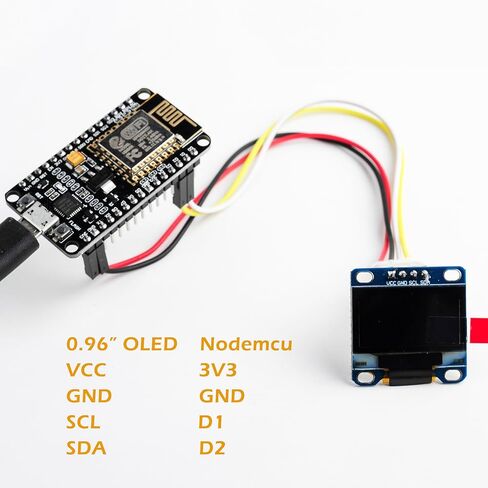

Supported platforms for Arduino Raspberry Pi ESP32
Low power consumption 0.04W during normal operation
Support wide voltage 3.3V-5V DC
Working temperature -30-80 degrees

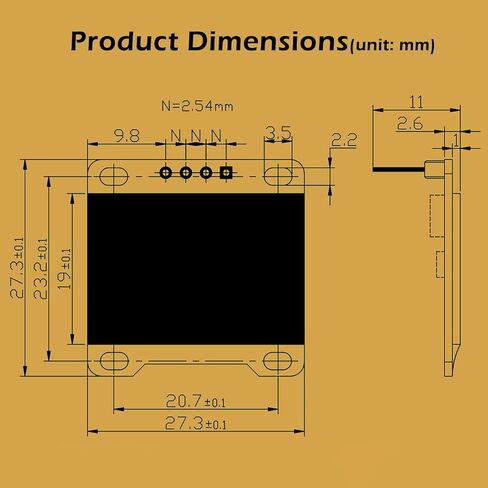

Volume 27MM 27MM 4.1MM
Driver IC SSD1306
Communication IIC, only two I O ports
No font The software takes word modulo
Backlight OLED self light, no backlight

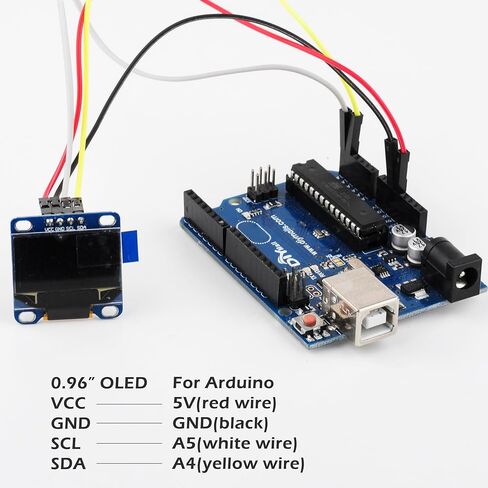

Interface
VCC 3.3-5V
GND Ground
SCL Serial Clock
SDA Serial Data

Package Included
2 X IIC OLED Module
